Introduction
Rotary dampers can be divided into four main types based on their internal structure and working mechanism: disk dampers, gear dampers, mini barrel dampers, and vane dampers.
Each type differs in torque range, rotation angle, damping direction, and suitable applications. Understanding these differences is the first step toward selecting the right rotary damper for your product.
Before diving into the types, if you are not yet familiar with how rotary dampers work, we recommend reading What Is a Rotary Damper? first.

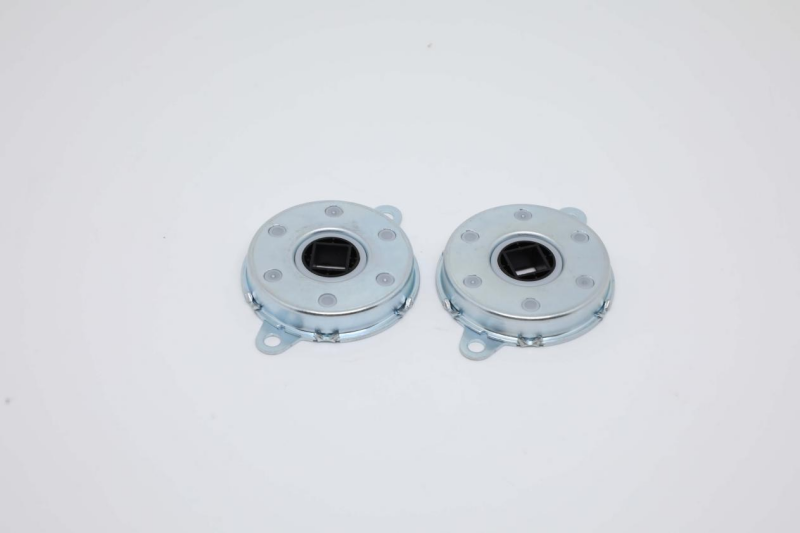

Section 1: Disk Damper
How It Works
A disk damper contains a circular disk that rotates inside a housing filled with viscous silicone oil. As the disk rotates, it forces the oil through controlled internal channels, generating resistance that slows down the rotational motion.
Key Specifications
● Rotation angle: 360°, unrestricted
● Damping direction: one-way or two-way
● Material: iron alloy body with silicone oil
● Torque range: 1 N·m to 10N·m
● Service life: at least 50,000 cycles without oil leakage
Suitable Applications
● Auditorium seating and cinema seating — seat panel flip damping
● Medical beds and ICU beds — side rail movement control
● Automotive seat adjustment mechanisms
● Any rotating structure requiring high torque damping
Why Choose a Disk Damper
Disk dampers offer the widest torque range among all four rotary damper types, making them the right choice for heavy-duty rotating structures that require substantial damping force. The metal construction also provides higher durability and load-bearing capacity compared to plastic alternatives.
Browse Toyou's disk damper product range: Disk Damper

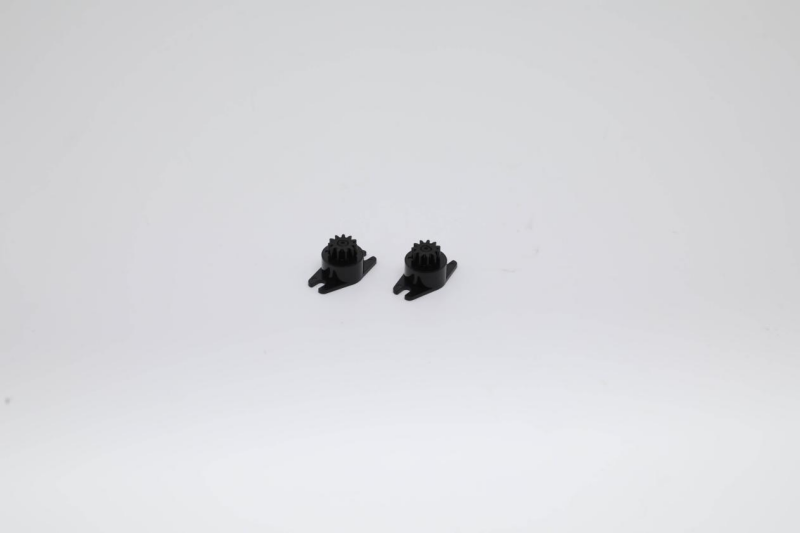

Section 2: Gear Damper
How It Works
A gear damper uses an internal gear mechanism to control the flow of silicone oil. When an external force drives the gear to rotate, the gear pushes the oil through a controlled passage, and the resistance from the oil flow precisely regulates the rotational speed. The gear transmission mechanism allows for more accurate and consistent speed control compared to other types.
Key Specifications
● Rotation angle: 360°
● Damping direction: one-way or two-way
● Material: plastic or metal body with silicone oil
● Service life: at least 50,000 cycles without oil leakage
● Torque range: customizable to application requirements
Suitable Applications
● Automotive glove compartments
● Automotive center armrests
● Automotive interior grab handles
● Consumer electronics requiring precise, consistent speed control
Why Choose a Gear Damper
The primary advantage of a gear damper is its high precision in speed control. In automotive interior applications where consistency and quality feel are critical, the gear mechanism delivers more stable and repeatable damping performance — meeting the strict quality standards of automotive manufacturers.
Browse Toyou's gear damper product range: Gear Damper

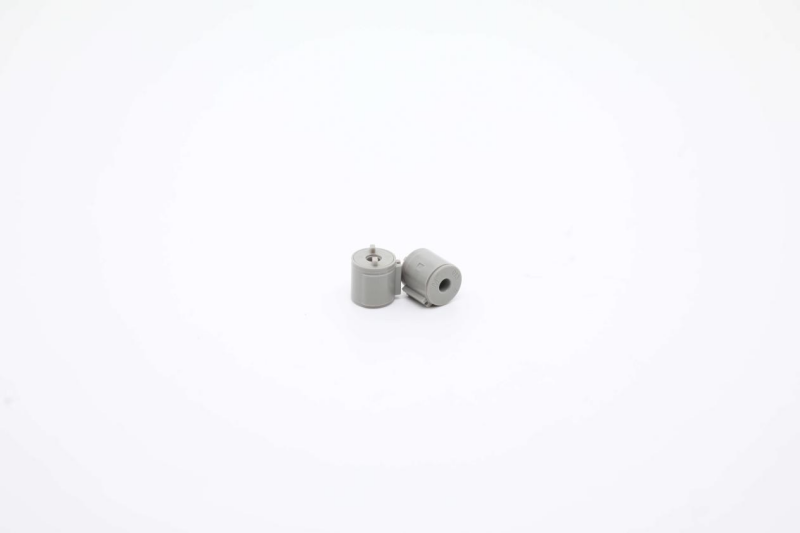

Section 3: Mini Barrel Damper
How It Works
A mini barrel damper has a cylindrical (barrel-shaped) housing. An internal rotor spins inside the oil-filled barrel, generating resistance through viscous fluid flow. The barrel shape results in the most compact form factor among all four rotary damper types, making it suitable for installations with very limited space.
Key Specifications
● Rotation angle: 360°
● Damping direction: two-way
● Material: plastic body with silicone oil
● Torque range: 5 N·cm to 130 N·cm across available models
● Service life: at least 50,000 cycles without oil leakage
Suitable Applications
● Automotive roof grab handles
● Automotive armrests
● Automotive interior trim components
● Any product design where installation space is extremely limited
Why Choose a Mini Barrel Damper
When a product requires rotary damping but has very limited internal space, the mini barrel damper is the most practical solution. Its cylindrical profile also makes it easier to integrate into round mounting holes in various product structures.
Browse Toyou's mini barrel damper product range: Mini Barrel Damper

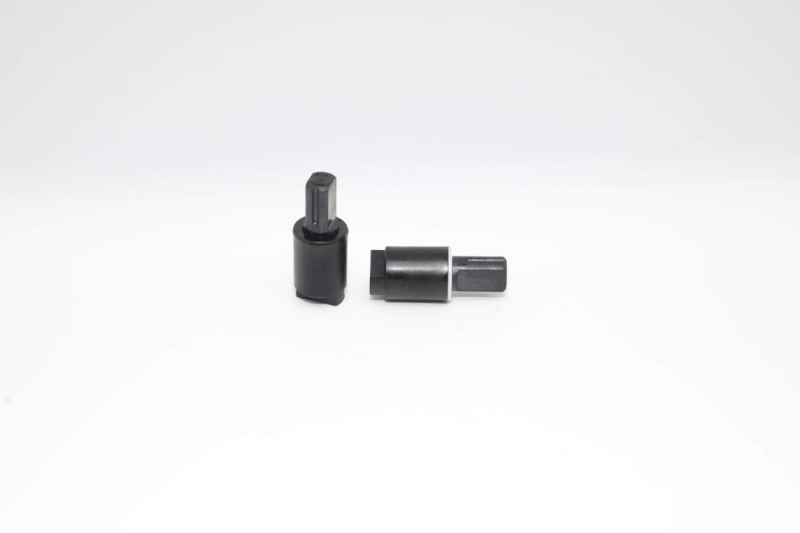

Section 4: Vane Damper
How It Works
A vane damper contains one or more vanes that rotate through a housing filled with viscous silicone oil. As the vanes move, they push the oil through controlled internal passages, creating resistance that slows down the rotation. The vane design limits the maximum rotation angle but makes one-way damping straightforward to implement.
Key Specifications
● Rotation angle: maximum 110° (angle-limited)
● Damping direction: one-way (clockwise or counterclockwise)
● Material: plastic or metal body with silicone oil
● Torque range: 1 N·m to 4 N·m
● Service life: at least 50,000 cycles without oil leakage
Suitable Applications
● Soft-close toilet seat mechanisms — the most typical application
● Home appliance lids such as washing machine covers and rice cooker lids
● Furniture lid covers
● Any flip cover structure with a rotation angle of 110° or less that requires one-way damping
Why Choose a Vane Damper
Vane dampers are the standard solution for soft-close toilet seat applications. The one-way damping characteristic allows the seat to close slowly and quietly while opening freely without any resistance, creating a natural and effortless user experience. The 110° rotation range also matches the actual opening angle of most flip cover structures.
Browse Toyou's vane damper product range: Vane Damper
Section 5: Side-by-Side Comparison
|
|
Disk Damper |
Gear Damper |
Mini Barrel Damper |
Vane Damper |
|
Rotation angle |
360° |
360° |
360° |
Max 110° |
|
Damping direction |
One-way or two-way |
One-way or two-way |
Two-way |
One-way |
|
Torque range |
1–10 N·m |
0.1–25 N·cm |
5–130 N·cm |
1–4 N·m |
|
Main material |
Metal |
Plastic or metal |
Plastic |
Plastic or metal |
|
Best for |
Auditorium seats, medical beds |
Automotive interiors |
Space-limited applications |
Toilet seats, flip covers |
|
Service life |
≥50,000 cycles |
≥50,000 cycles |
≥50,000 cycles |
≥50,000 cycles |
Section 6: How to Choose the Right Type
Use the following logic to identify the most suitable rotary damper type for your application:
High torque (1 N·m or above) + 360° rotation required → Disk Damper Suitable for heavy-duty rotating structures such as auditorium seating and medical bed side rails.
Precise speed control + automotive interior application → Gear Damper Suitable for glove compartments, center armrests, and other applications where consistent damping quality is critical.
Very limited installation space + automotive component → Mini Barrel Damper Suitable for roof grab handles, interior trim parts, and other space-constrained applications.
Rotation angle ≤110° + one-way damping only required → Vane Damper Suitable for toilet seats, home appliance lids, and other flip cover structures.
If you are still unsure which type is right for your application, our complete selection guide covers torque calculation, damping direction, installation requirements, and environmental considerations in detail: How to Choose a Rotary Damper
Our Rotary Damper Products
Toyou manufactures all four types of rotary dampers — disk, gear, barrel, and vane — for automotive, furniture, home appliance, and medical device applications. All products comply with RoHS directives, and custom torque specifications are available on request.
Browse our complete rotary damper product range: Rotary Dampers
For technical support, product recommendations, or sample requests, contact our engineering team.
