Introduction

Selecting the right rotary damper for your application requires careful consideration of several factors. Choosing a damper with insufficient torque will result in uncontrolled or noisy closing motion. Choosing one with excessive torque may prevent the component from closing properly. An incorrect size or installation type can create unnecessary design complications.

The following steps will guide you through the rotary damper selection process.

Before selecting a rotary damper, it helps to first understand what a rotary damper is and how it works. See What Is a Rotary Damper.

Step 1 — Confirm Your Motion Type

The first step is to confirm that your application involves rotational motion. Rotary dampers are designed specifically to control motion around a rotational axis.

Rotary dampers are suitable for:

1.Hinges and flip cover structures

2.Toilet seat soft-close mechanisms

3.Automotive glove compartments, armrests, and cup holders

4.Furniture cabinet doors and lid covers

5.Washing machine covers and household appliance panels

Linear dampers are not suitable for:

1.Straight-line motion such as sliding doors, drawers, or push-pull mechanisms

If your application involves straight-line motion, a linear damper may be more suitable. See our comparison guide Linear Damper vs Rotary Damper for a detailed breakdown of the differences."

Step 2 — Choose the Right Rotary Damper Type

Toyou offers four types of rotary dampers, each designed for different applications and torque requirements. Selecting the correct type is one of the most important steps in the selection process.

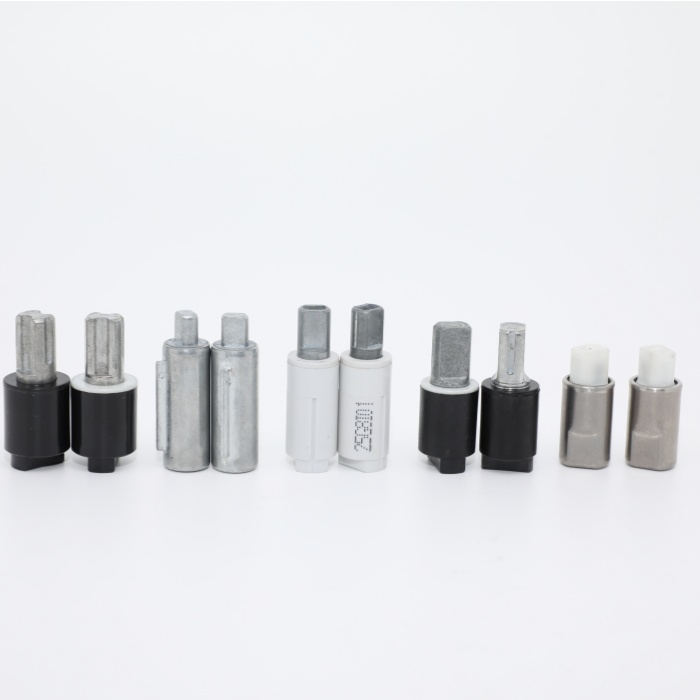

Vane Dampers provide one-way damping with a maximum rotation angle of 110°. They are best suited for applications where the component rotates within a limited angle, such as toilet seat lids, flip covers, and single-direction closing mechanisms. Toyou vane dampers cover a torque range of 1 N·m to 4 N·m.

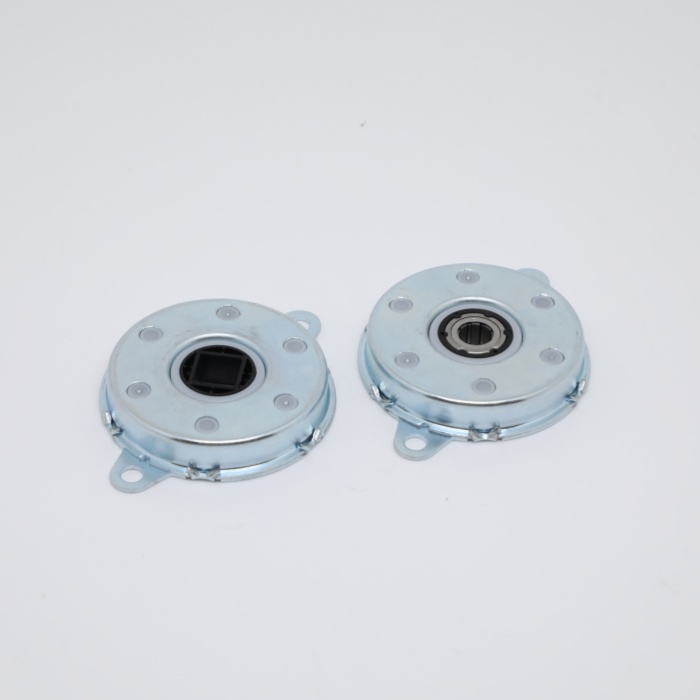

Disk Damper can provide either one-way or two-way damping and cover the widest torque range among Toyou's rotary damper types. They are well suited for high-torque applications such as auditorium seating, cinema chairs, and medical beds. Toyou disk dampers cover a torque range of 1 N·m to 13 N·m.

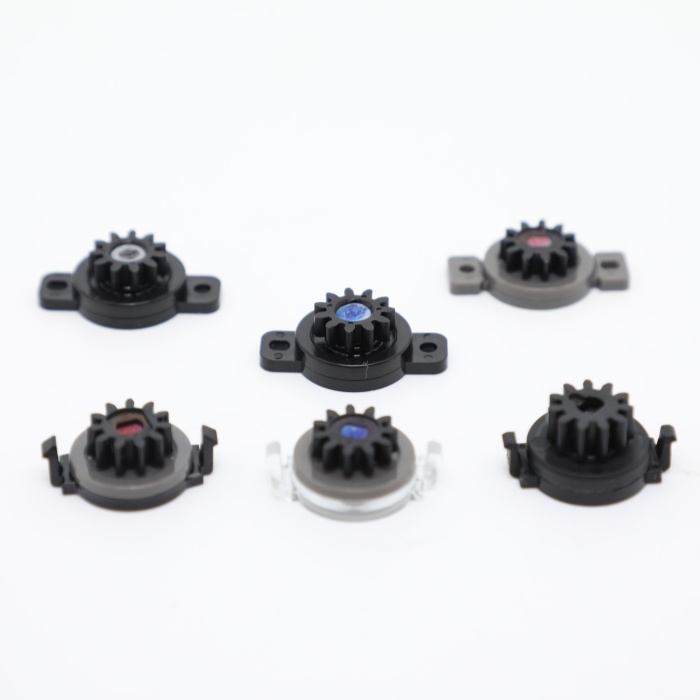

Gear Damper are available in both one-way and two-way damping configurations and are particularly well suited for applications requiring precise speed control. They are widely used in automotive interiors including glove compartments, center consoles, and interior grab handles. Toyou gear dampers are available in two torque ranges: 2 N·cm to 25 N·cm for standard applications, and 0.15 N·cm to 1.5 N·cm for lighter, more precise control.

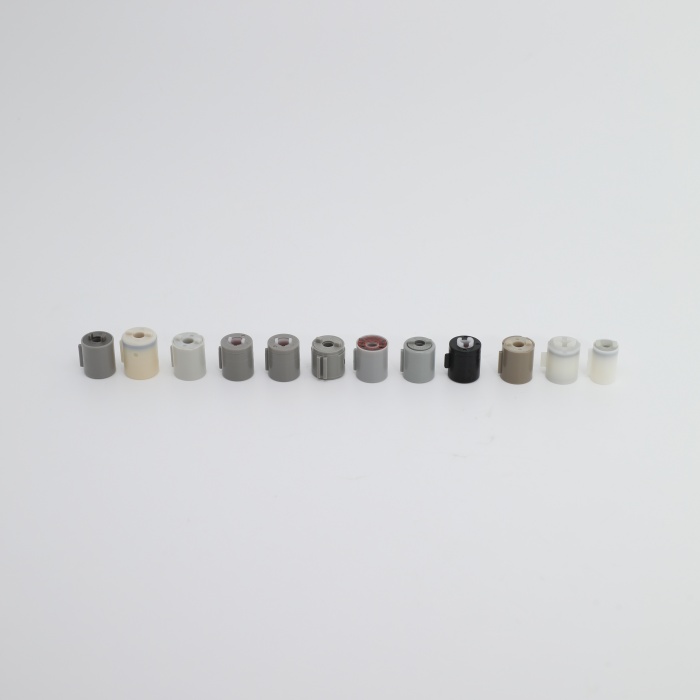

Mini Barrel Damper are the most compact option in Toyou's rotary damper range, making them ideal for applications where installation space is highly limited. Toyou mini barrel dampers cover a torque range of 5 N·cm to 20 N·cm.

	Vane Damper	Disk Damper	Gear Dampe	Mini Barrel Damper
Rotation angle	Max 110°	360°	360°	360°
Torque range	1–4 N·m	1–13 N·m	0.15–25 N·cm	5–20 N·cm
Damping direction	One-way	One or two-way	One or two-way	One-way
Best for	Toilet seats, flip covers	Auditorium seats, medical beds	Automotive interiors	Space-limited applications

Step 3 — Determine the Required Torque

Selecting the correct torque is critical to achieving the right damping performance. The required torque depends on the weight of the moving component, its length, and the position of the rotational axis.

1.Torque too high: The component feels stiff and the user may need to apply extra force to close it fully

2.Torque too low: The damping effect is insufficient and the component may still slam or produce impact noise at the end of travel

A basic formula for calculating the required torque is:

T = M × L × 9.8 ÷ 2

Where T is the required torque (N·m), M is the mass of the moving component (kg), L is the length of the component (m), and the division by 2 accounts for the pivot point being at the center of the component.

For example, if a lid has a mass of 1.5 kg and a length of 0.4 m, the required torque is:

T = 1.5 × 0.4 × 9.8 ÷ 2 = 2.94 N·m

Based on this result, a disk damper with a torque rating close to 2.94 N·m would be the appropriate choice.

If you are unsure how to calculate the required torque for your application, contact our engineering team with the weight and dimensions of the moving component and we will recommend the most suitable rotary damper model.

Step 4 — Select the Damping Direction

Rotary dampers are available in one-way and two-way damping configurations. Selecting the correct damping direction depends on the motion requirements of your application.

One-way damping The damper provides resistance in one rotational direction only, while rotating freely in the opposite direction. This is the most common configuration and is well suited for applications where only the closing motion needs to be controlled, such as toilet seat lids, flip covers, and automotive glove compartments.

Two-way damping The damper provides resistance in both rotational directions. This configuration is suitable for applications where both the opening and closing motion need to be controlled, such as automotive armrests, adjustable furniture, and medical bed rails.

Step 5 — Check Installation Requirements

Installation orientation The orientation of the rotary damper during installation affects its damping performance. Rotary dampers can typically be installed horizontally, vertically, or at an angle, but always confirm the rated orientation with the product specifications before installation.

Mounting position Rotary dampers must be installed at or near the rotational axis of the moving component. The further the damper is positioned from the axis, the more the effective torque will deviate from the rated value.

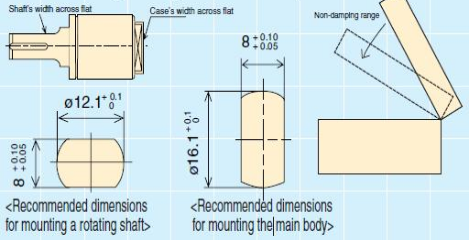

Mounting style Different rotary dampers support different mounting styles including insert type, flange type, and embedded design. Confirm which mounting style is compatible with your product structure before selecting a model.

Installation space Ensure there is sufficient clearance for the damper's outer dimensions and for the full range of rotational movement during operation.

Step 6 — Consider Environmental Conditions

Temperature The viscosity of silicone oil changes with temperature. In high-temperature environments such as automotive interiors exposed to direct sunlight, or low-temperature environments such as refrigeration equipment, always confirm that the damper's oil specification remains stable and effective across the full operating temperature range.

Service life and usage frequency Toyou rotary dampers are designed for long service life in high-frequency applications. For demanding environments, confirm that the rated cycle life of the selected model meets the requirements of your application before finalizing your selection.

Corrosion resistance and material compliance For applications in humid, outdoor, or medical environments, select rotary dampers with corrosion-resistant materials. All Toyou rotary dampers comply with RoHS directives, and food-grade or medical-grade material options are available on request.
