How Does a Rotary Damper Work? Explained in Simple Terms

A rotary damper controls the speed of rotating motion by generating resistance through the flow of viscous silicone oil. This controlled resistance slows down moving parts, creating the smooth, quiet closing motion found in products ranging from soft-close toilet seats to automotive glove compartments.

Learn more in our article "What Is a Rotary Damper"

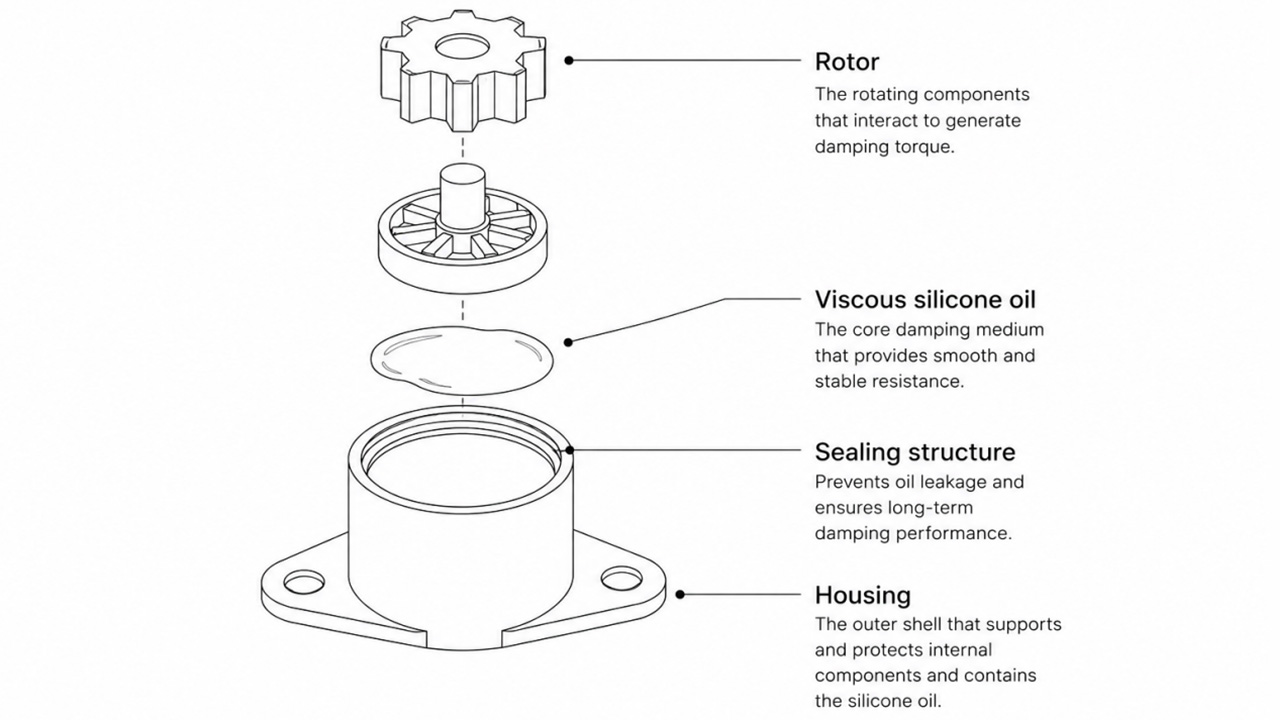

Section 1: Key Components of a Rotary Damper

• Housing

• Rotor

• Viscous silicone oil

• Sealing structure

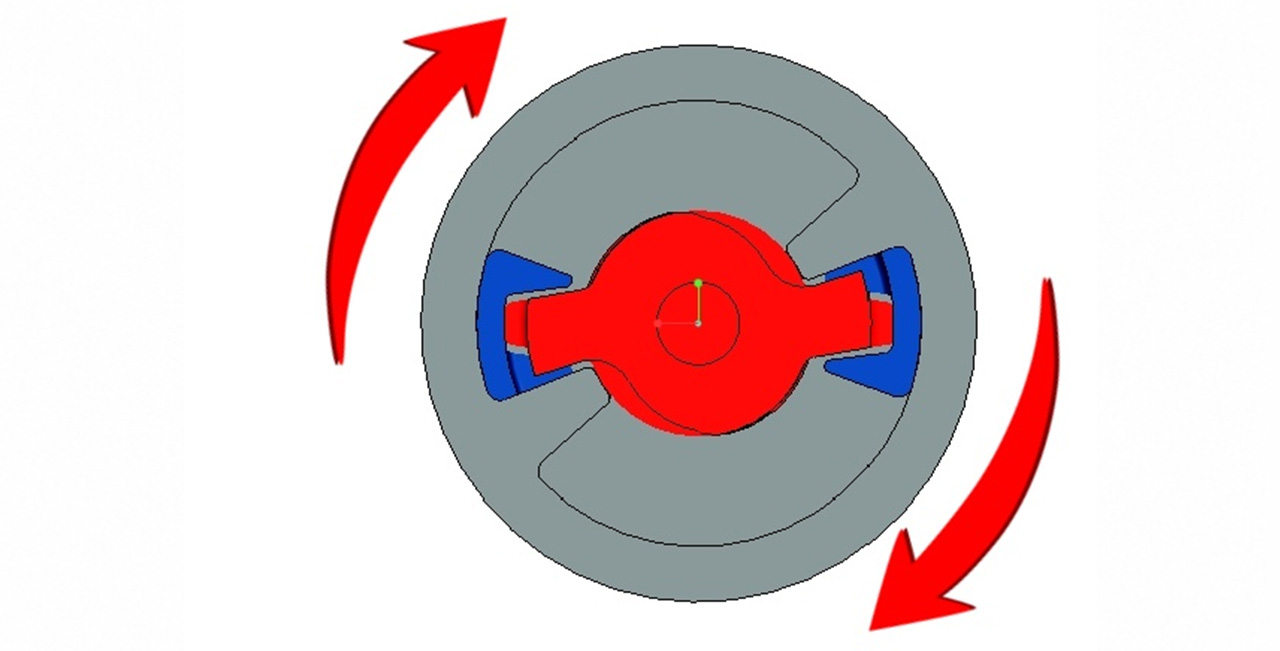

Section 2: The Working Principle Step by Step

• An external force causes the rotor to rotate inside the housing

• The rotor moves vanes or gears through the viscous silicone oil

• The oil is forced through controlled internal channels

• The resistance from oil flow slows down the rotation

• When the force is removed, the motion stops smoothly at the current position

Section 3: One-Way vs Two-Way Damping

• One-way: Resistance is generated in only one rotational direction.

• Two-way: Resistance is generated in both rotational directions.

One-way dampers are commonly used in applications where resistance is only required in one direction. For example, toilet seats only need damping during closing; resistance during opening would negatively affect the user experience.

Two-way dampers are commonly used in applications such as revolving doors or blackout blinds, where resistance is required during both opening and closing motions.

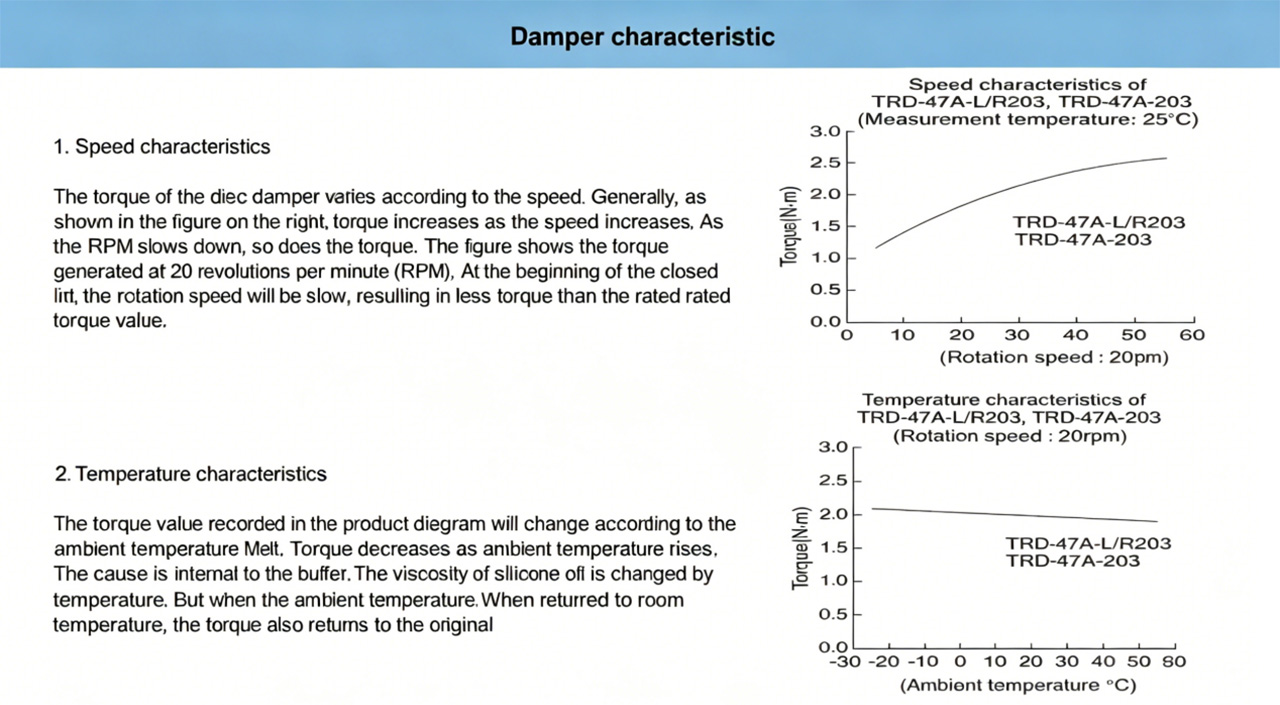

Section 4: How Temperature Affects Performance

• The viscosity of silicone oil changes with temperature.

• Damping resistance decreases at high temperatures and increases at low temperatures.

• The operating temperature range of the application should be confirmed.

Section 5: Different Types, Different Mechanisms

• Vane Damper — vanes rotate through oil

• Disk Damper — disks generate resistance

• Gear Damper — gears control oil flow

• Mini Barrel Damper — compact barrel design

Learn more about rotary dampers in "How to Choose the Right Rotary Damper"
