Uni-Directional Rotary Buffer: TRD-D4 for Toilet Seats

1. The rotary damper featured here is specifically designed as a one-way rotational damper, ensuring controlled movement in a single direction.

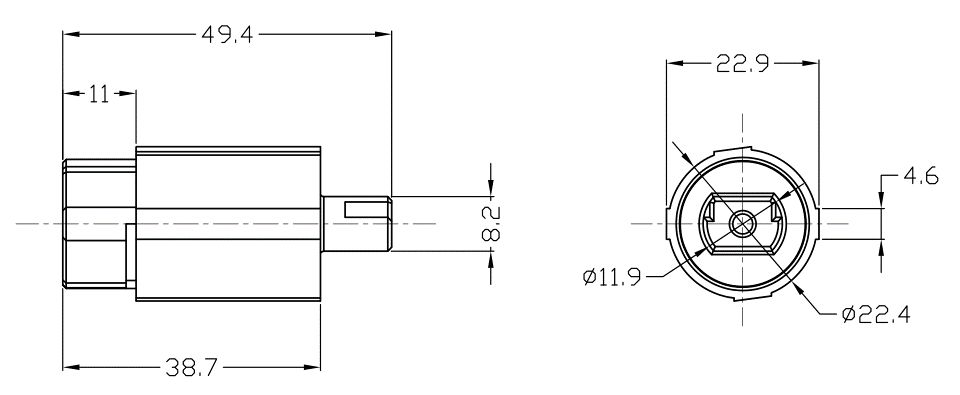

2. Its compact and space-saving design makes it ideal for easy installation in various applications. Please refer to the provided CAD drawing for detailed dimensions and installation instructions.

3. With a rotation range of 110 degrees, the damper enables smooth and precise motion within this designated range.

4. The damper is filled with high-quality silicon oil, which contributes to efficient and reliable damping performance.

5. Operating in one direction either clockwise or counterclockwise, the damper provides consistent resistance for controlled motion in the chosen direction.

6. The torque range of the damper is between 1N.m and 3N.m, offering a suitable range of resistance options to suit various applications.

7. The damper boasts a minimum lifetime of at least 50,000 cycles without any oil leakage, ensuring long-lasting and reliable performance over an extended period.
