Rotary Damper Damping Direction and Working Angle
Besides damping torque, two other important parameters to consider when choosing a rotary damper are Damping Direction and Working Angle.
Both are related to rotational movement, but they describe different things.
● Damping Direction: In which rotational direction does the damper provide resistance?
● Working Angle: Within what rotational range can the damper operate?
Understanding the difference between these two parameters helps determine whether a rotary damper can control a product's movement as intended.
Table of Contents
Part 1 — Damping Direction
1. What Is Damping Direction?
Damping direction refers to the rotational direction in which a rotary damper provides resistance.
Rotary dampers are generally divided into two types based on their damping direction:
●One-Way Damping
●Two-Way Damping
A one-way rotary damper provides resistance mainly in one rotational direction, while a two-way rotary damper provides resistance in both directions.
2. One-Way vs. Two-Way Damping
One-Way Damping
A one-way rotary damper provides damping mainly in one rotational direction, with much less resistance in the opposite direction.
Depending on the damping direction, it can be:
●CW (Clockwise): Damping is applied during clockwise rotation.
●CCW (Counterclockwise): Damping is applied during counterclockwise rotation.
It is worth noting that a one-way damper is not completely resistance-free in the opposite direction. The resistance is simply much lower.
Two-Way Damping
A two-way rotary damper provides damping in both clockwise and counterclockwise directions.
This means it provides resistance during both CW and CCW rotation.
3. How Damping Direction Affects Opening and Closing Motion
Why do rotary dampers need different damping directions?
One important reason is to ensure smooth movement without adding unnecessary resistance during operation.

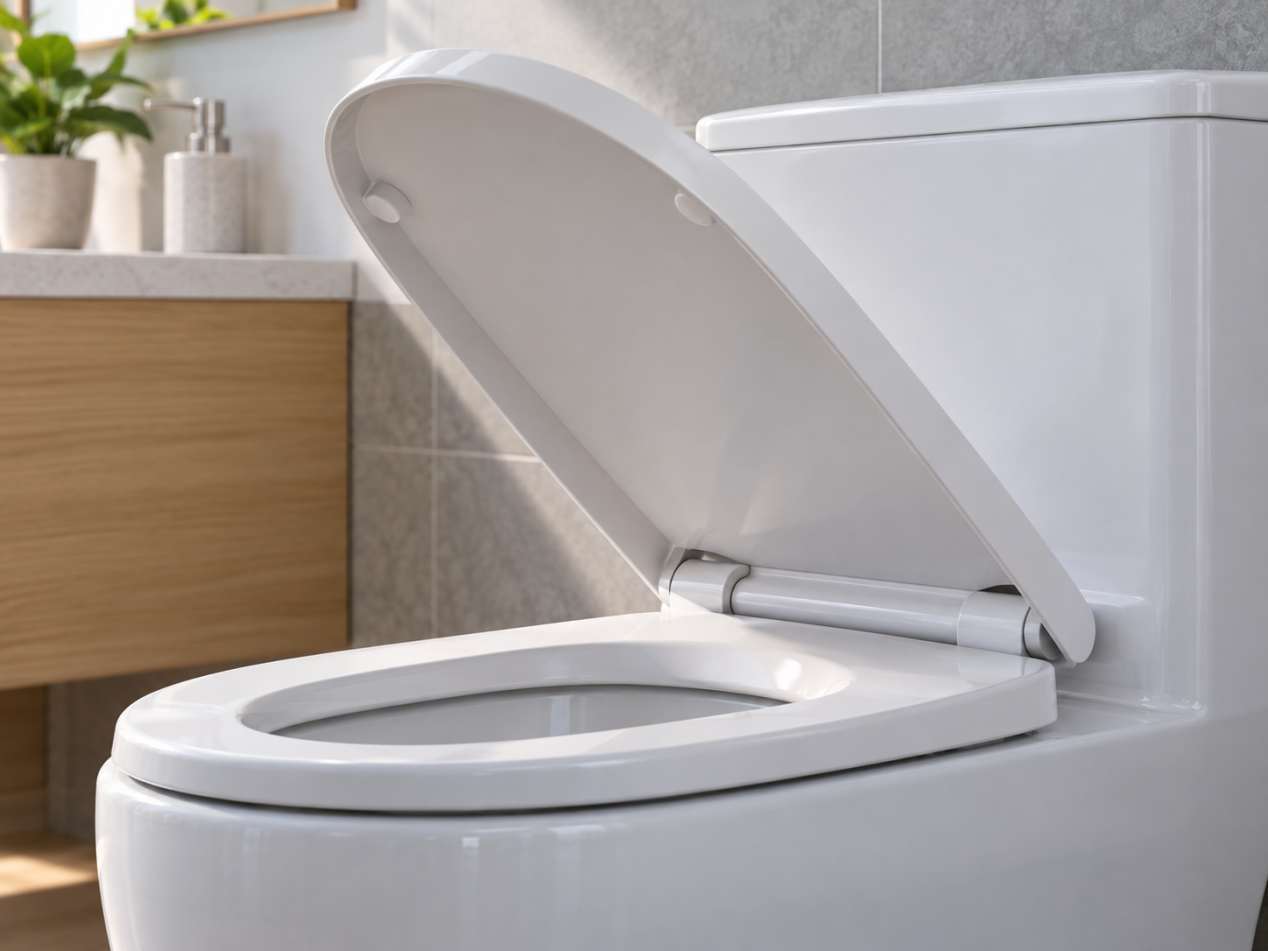

One-Way Damping Application: Toilet Seat Lid
A toilet seat lid is a good example.
For a lightweight plastic toilet seat lid, the damping torque required for closing is usually relatively low. Even if a two-way damper is used, the resistance during opening may not be very noticeable. In this case, the difference between using a one-way and a two-way damper may have little impact on the user experience.
But the situation changes with a heavier wooden toilet seat lid.
A heavier lid usually requires higher damping torque to control its closing movement. If a two-way damper with high resistance in both directions is used, lifting the lid may require noticeably more effort, making it less comfortable to use.
A one-way damper, on the other hand, can provide strong resistance during closing while keeping resistance low during opening. This allows the lid to close slowly while remaining easy to lift.
Therefore, depending on the weight and design of the product, the choice between one-way and two-way damping can make a significant difference in the user experience.
Two-Way Damping Application: Two-Way Swinging Door
Now consider a different type of movement.
Imagine a small swinging pet door that allows a cat to enter and leave the house.
The door can swing both inward and outward. After the cat passes through, the flap may continue swinging as it returns to its original position.
If the goal is to reduce this back-and-forth movement, a two-way rotary damper can be used to control the door.
This way, the flap receives damping resistance whether it swings inward or outward, helping reduce sudden movement and impact.
Otherwise, the poor cat might get bumped by the swinging flap on its way in or out!
Part 2 — Working Angle
1. What Is the Working Angle of a Rotary Damper?
The working angle refers to the specified range of rotation within which a rotary damper can operate.
It is a different concept from damping direction.
For example, suppose a rotary damper has the following specifications:
One-Way / CW / 110°
This means the damper provides resistance when rotating clockwise within its 110° working range.
In other words, under the specified installation and operating conditions, the damper can operate through a 110° rotation and provide damping in the designated direction.
Now consider another damper with these specifications:
Two-Way / CW & CCW / 110°
This means the damper provides resistance in both clockwise and counterclockwise directions within its 110° working range.
Do Different Types of Rotary Dampers Have Different Working Angles?
Yes. Different types of rotary dampers may have different working angles.
For example, vane dampers use a one-way damping design with a limited working angle due to their internal structure.
Gear dampers, disk dampers, and barrel dampers are available in both one-way and two-way designs. Some models also support continuous rotation, allowing them to rotate through multiple revolutions.
2. How to Match the Working Angle to Product Movement
Once we understand the working angle, the next question is:
Does the damper's working angle match the rotation required by the product?
Let's take a toilet seat lid as an example.
Suppose the lid rotates 110° from fully closed to fully open.
If the rotary damper is installed directly on the lid's pivot and rotates together with it, the damper must also rotate through 110°.
Therefore, the selected damper must be able to complete this 110° movement within its specified working range.
If the damper only allows 90° of rotation, it cannot directly meet this requirement.
Of course, the product's rotation angle and the damper's rotation angle are not always the same. We will not go into those special cases here.
3. What Happens If the Working Angle Is Exceeded?
What happens if the rotation exceeds the damper's specified working angle?
The damper may not be damaged immediately, but repeatedly operating beyond its working angle can eventually cause damage.
Part 3 — Damping Direction and Working Angle in Real Applications
1. Matching Damping Direction and Working Angle Together
In real applications, both damping direction and working angle must match the product's movement requirements.
For example, suppose a lid needs to rotate 110°, with easy opening and slow, controlled closing.
We need to confirm two things:
●Damping Direction: Choose a one-way damper that provides resistance in the closing direction.
●Working Angle: If the damper rotates together with the lid, it must be able to complete the required 110° rotation.
If the damping direction is incorrect, the lid may not close slowly as intended. If the working angle is insufficient, the lid may not be able to complete its normal opening and closing movement.
In short, damping direction determines which direction receives resistance, while working angle determines the range of rotation the damper can handle. Both must match the product's movement requirements.
2. Before Torque Curve Matching: Confirm Direction and Working Angle
As we have discussed, damping direction and working angle are two important requirements when selecting a rotary damper.
However, confirming these two parameters does not necessarily mean we have found the right damper.
Even if the damping direction is correct and the working angle is sufficient, the actual damping torque may still not meet the product's needs.
For example, suppose a lid requires damping during closing and rotates through 110°.
We find a damper with the correct damping direction and working angle, and its rated torque is close to our calculated requirement.
Does this mean the lid will definitely close smoothly at the desired speed?
Not necessarily.
The actual damping torque can also be affected by rotational speed, temperature, and the damper's internal design. In some dampers, the damping characteristics may also change with the rotational position.
Therefore, after confirming the damping direction and working angle, we still need to evaluate whether the damper's torque performance matches the product's needs throughout its movement.
This is where Torque Curve Matching becomes important.
To put it simply:
●Damping Direction: In which direction is damping applied?
●Working Angle: Can the damper complete the required rotational movement?
●Torque Curve Matching: Does the damping torque behave as required throughout the movement?
These factors are related, but each addresses a different engineering question.
To learn more about how damping torque changes during movement and how to match a damper's torque characteristics to an application, read our article on Torque Curve Matching.
