What Is a Linear Damper

A linear damper is a mechanical damping component used to control motion speed and reduce impact in moving systems. It is widely used in various mechanical structures where controlled movement or buffering is required.

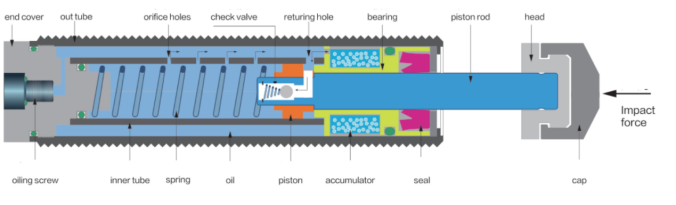

Unlike rotary dampers, which control rotational motion, a linear damper is designed to manage movement along a straight line. When an external component moves and compresses the damper, an internal piston forces damping oil to flow inside the chamber. This process generates consistent resistance, which slows down the movement and absorbs part of the impact energ.

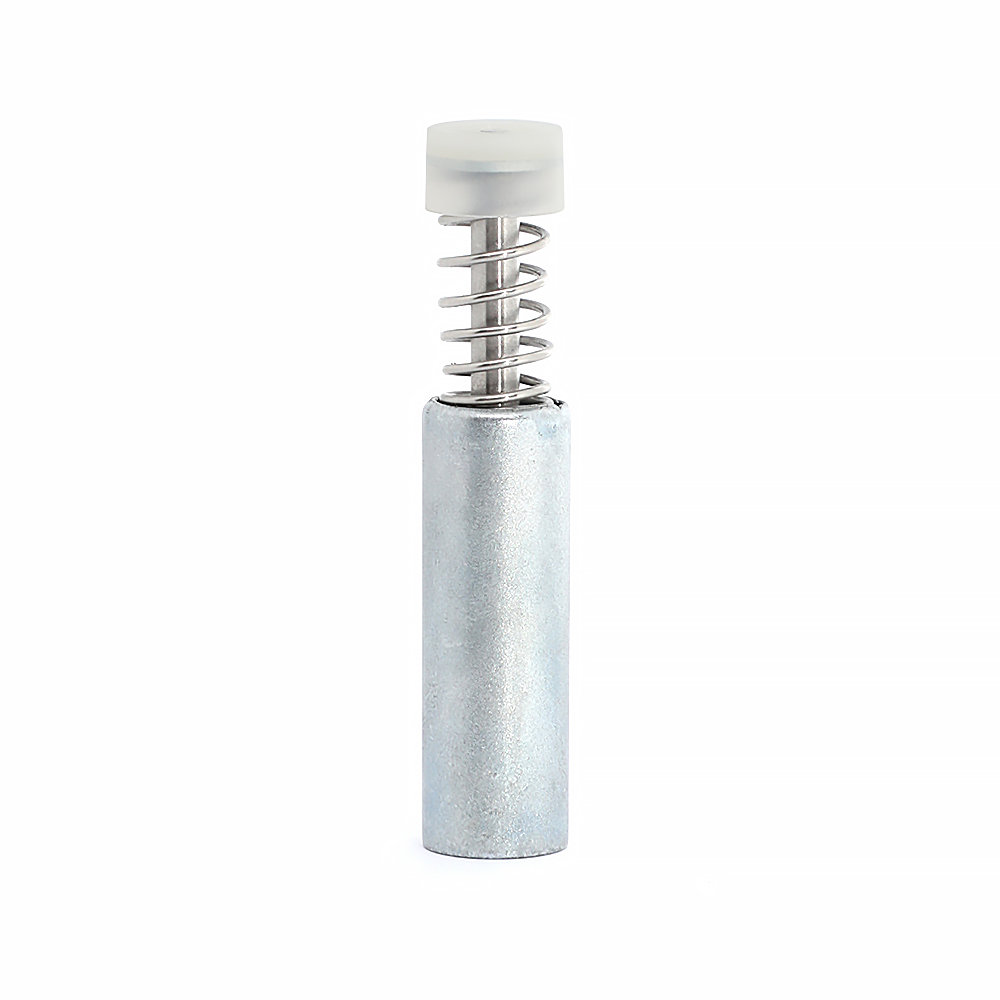

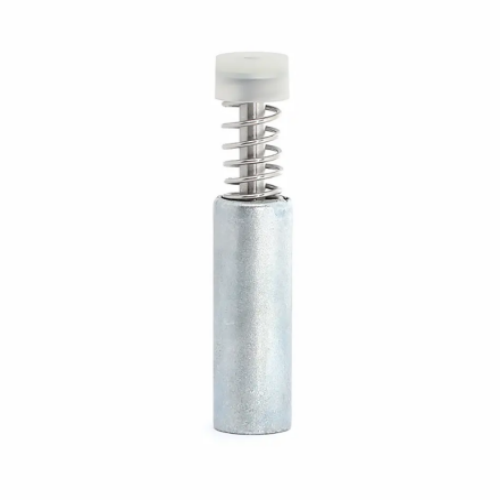

Many linear dampers also include an integrated spring structure. When an external part contacts the damper and compresses the spring, the internal damping oil begins to generate resistance. This resistance helps reduce the speed of the moving component and prevents sudden impact during motion.Through this mechanism, a linear damper can significantly reduce closing speed, minimize collision force, and make product movement smoother and quieter.

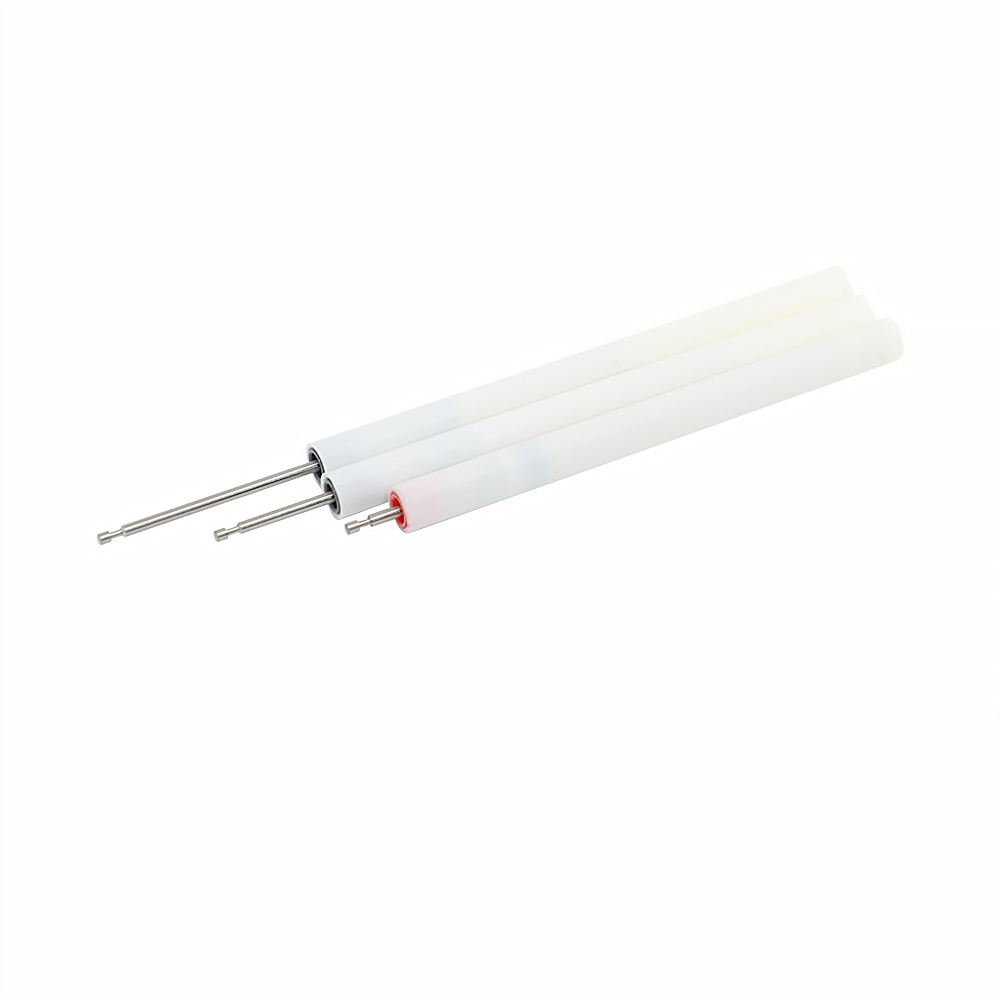

Because of these structural characteristics, linear dampers are mainly used in linear motion systems, such as sliding mechanisms, push-pull structures, and other applications where controlled closing movement is required.

2. Should You Choose a Linear Damper or a Rotary Damper?

In product design, engineers often need to select the most suitable damping solution based on the structure and motion of the product.

One of the key differences between a linear damper and a rotary damper lies in the type of motion they control.

Rotary dampers are typically used in rotating structures such as hinges, lids, and flip-cover mechanisms. Because they are often integrated into hinge systems or internal structures, rotary dampers can usually be installed in a more concealed way.

In contrast, linear dampers are designed for straight-line motion, such as sliding mechanisms or linear track systems. In some designs, a linear damper may be partially visible, so engineers may need to consider installation space, structural layout, and appearance during the design process.

For this reason, the choice between a linear damper and a rotary damper usually depends on several factors, including the type of motion required, available installation space, and the overall functional requirements of the product.

3. Applications of Linear Dampers
Many linear dampers provide damping force primarily in one direction, which makes them especially suitable for applications where controlled closing is needed.

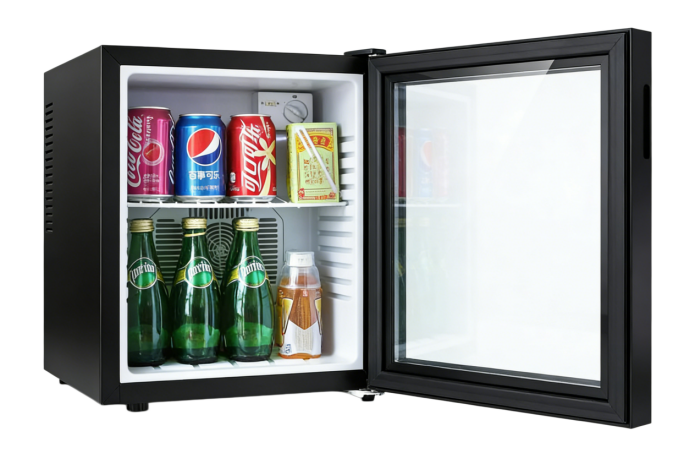

A common example can be found in home appliances. In products such as refrigerators, freezers, and ovens, designers often want the door to open easily while providing buffering when it closes.

For example, a soft close refrigerator door mechanism can benefit from a linear damper because it allows the door to close smoothly without slamming. Similarly, in some kitchen appliances, an oven door soft close system can reduce noise and improve the overall user experience.In cold-storage equipment, a freezer door damper can help slow down the closing motion of the door, reducing impact on the door frame and extending the lifespan of the product.

By integrating a linear damper into the linear movement structure, the closing stage can be effectively controlled to:

l reduce door closing speed

l lower noise during closing

l minimize structural impact

l improve the overall user experience

In addition to home appliances, linear dampers are also widely used in sliding mechanisms and drawer systems.For example, in furniture and storage systems, a linear damper can be integrated into soft close drawer slides, allowing drawers to close smoothly and quietly instead of slamming shut.If you want to explore this topic in more detail, read our article Linear Dampers for Sliding Systems to understand how linear dampers work in drawers, sliding doors, and other track-based mechanisms.
