A hinge is a mechanical component that provides a pivot point, allowing relative rotation between two parts. For example, a door cannot be installed or opened without hinges. Today, most doors use hinges with damping functionality. These hinges not only connect the door to the frame but also provide smooth, controlled rotation.

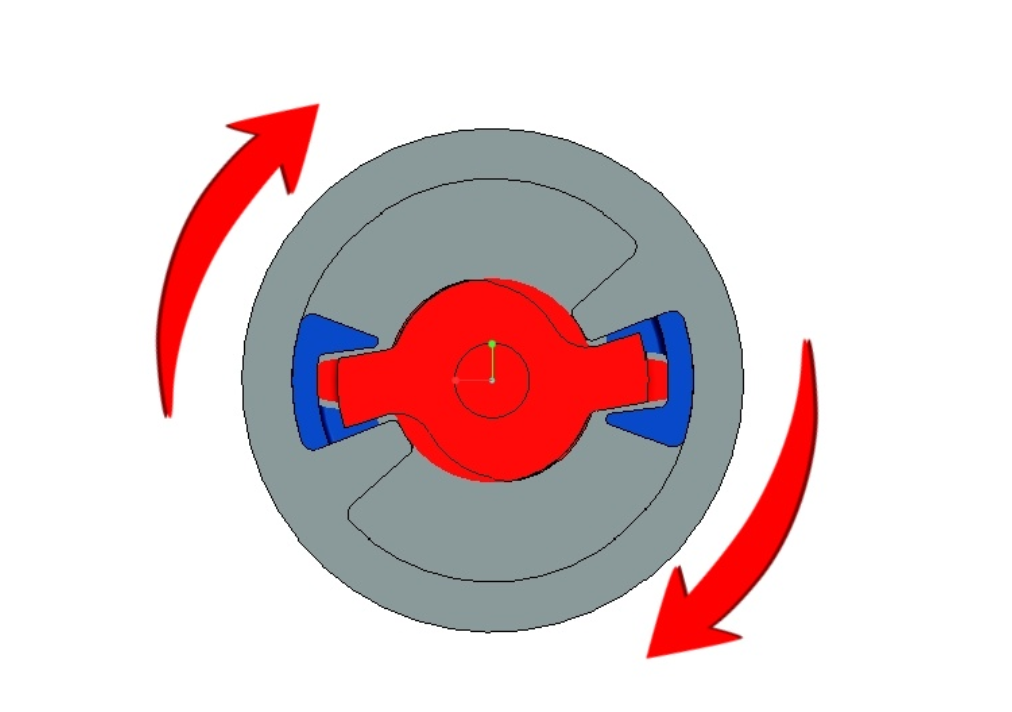

In modern industrial design, hinges and dampers are often integrated to meet practical needs, delivering more complex and superior performance. A damper hinge, also called a torque hinge, is a hinge with built-in damping. Most of Toyou’s damper hinge products are designed to provide smooth, soft-close operation, meeting real-world customer requirements.
Applications of Damper Hinges

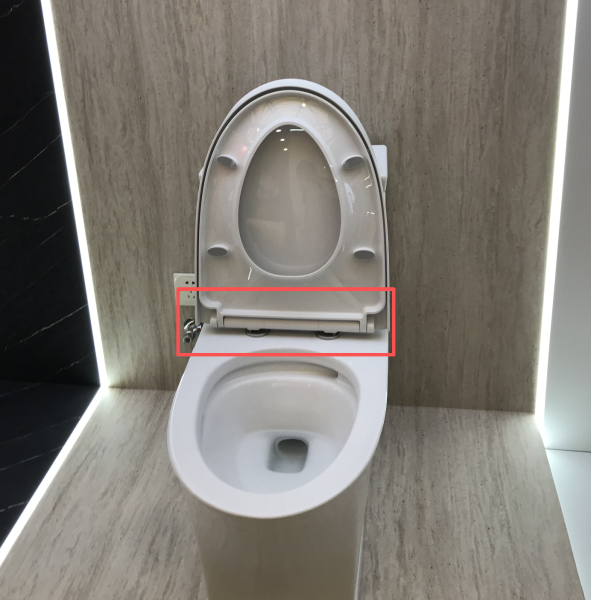

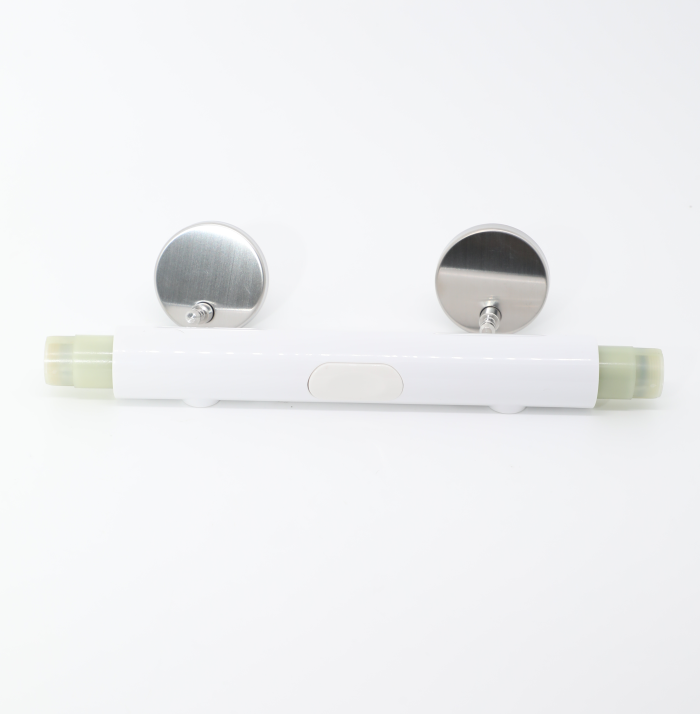

Damper hinges are widely used across various industries. A typical example is toilet soft-close hinges, which enhance safety and convenience. Toyou offers a range of high-quality toilet hinge products.

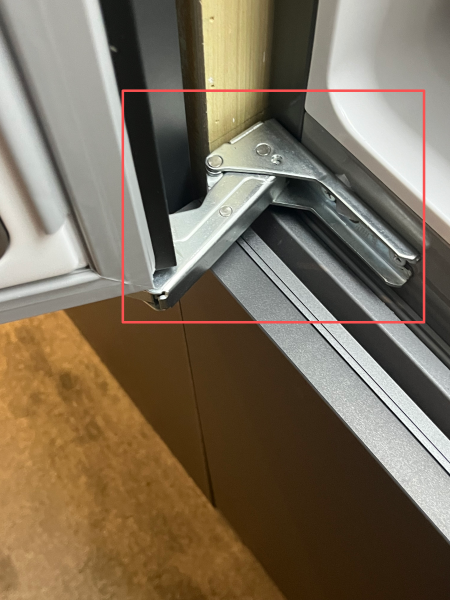

Other common applications of damper hinges include:

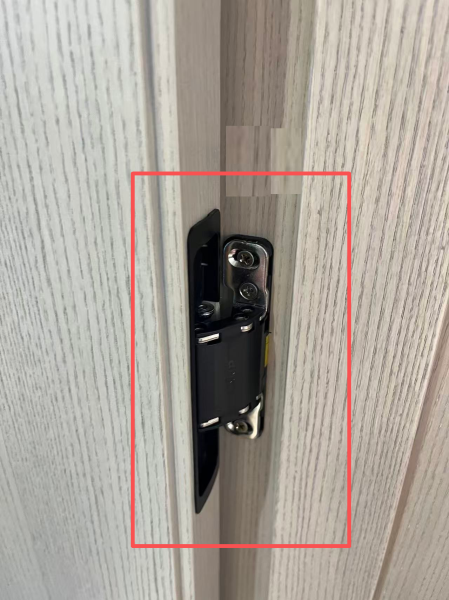

●Doors of all types
●Industrial control console enclosures

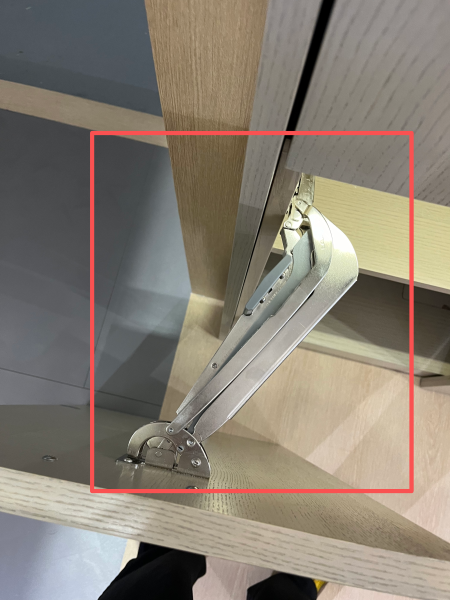

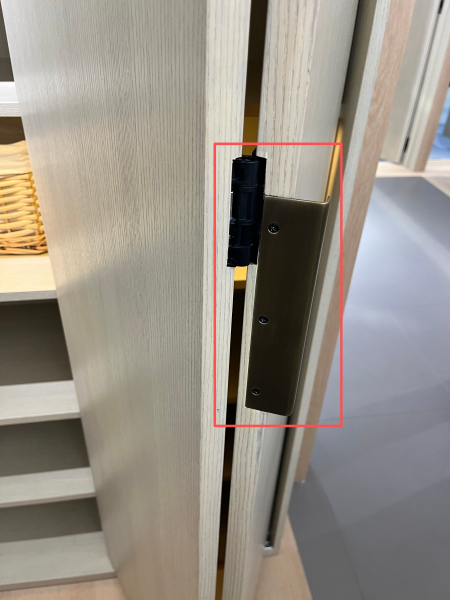

●Cabinets and furniture
●Medical equipment panels and covers
The Performance of Damper Hinges
In this video, Damper Hinges are applied to a heavy Industrial Control Console Enclosure. By enabling the lid to close gently and in a controlled manner, they not only prevent sudden slamming but also enhance operational safety and extend the product’s durability.
How to Choose the Right Damper Hinge
When selecting a torque hinge or damper hinge, consider the following factors:
● Load and Size
Calculate the required torque and available installation space.
Example: A panel weighing 0.8 kg with its center of gravity 20 cm from the hinge requires approximately 0.79 N·m of torque per hinge.
● Operating Environment
For humid, wet, or outdoor conditions, choose corrosion-resistant materials such as stainless steel.
● Torque Adjustability
If your application requires accommodating different loads or user-controlled motion, consider an adjustable torque hinge.
● Installation Method
Choose between standard or concealed hinge designs based on product aesthetics and functional requirements.
⚠ Professional Tip: Ensure the required torque is below the hinge’s maximum rating. A 20% safety margin is recommended for safe operation.
Discover our full range of damper hinges, torque hinges, and soft-close hinges for industrial, furniture, and medical applications. Toyou’s high-quality hinges provide reliable, smooth, and safe motion for all your designs.

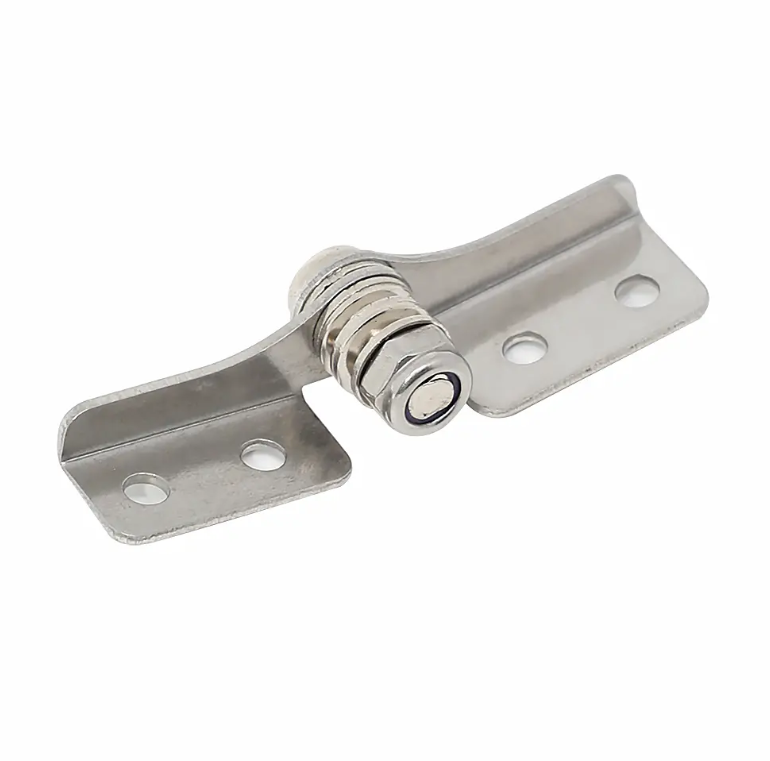

TRD-C1005-1

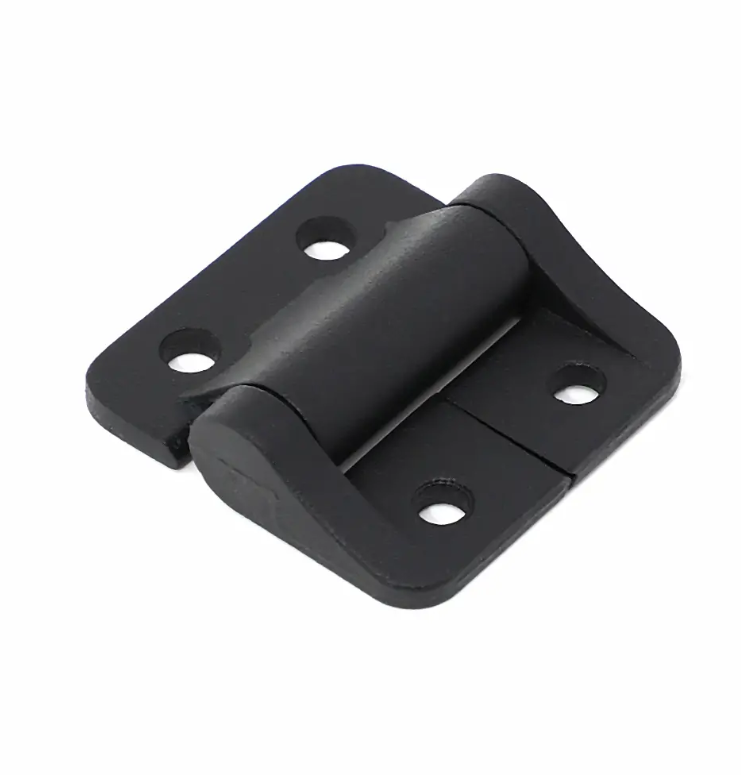

TRD-C1020-1

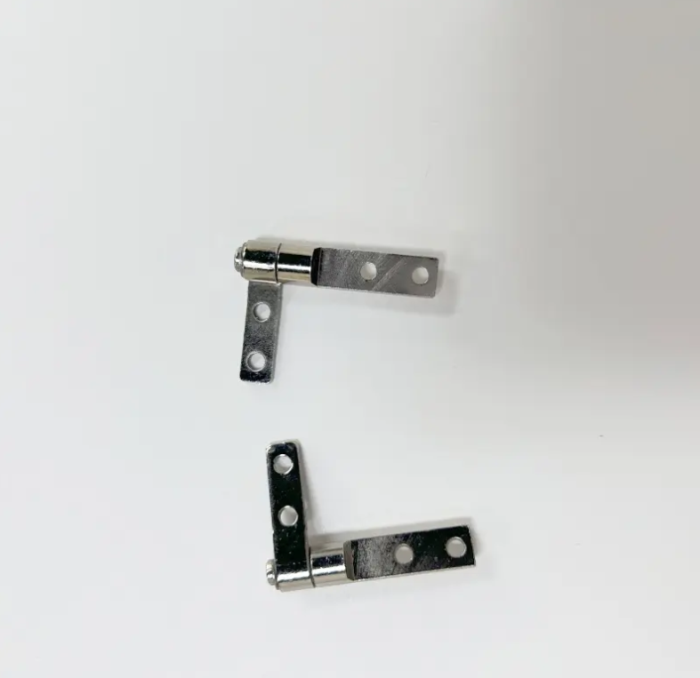

TRD-XG11-029

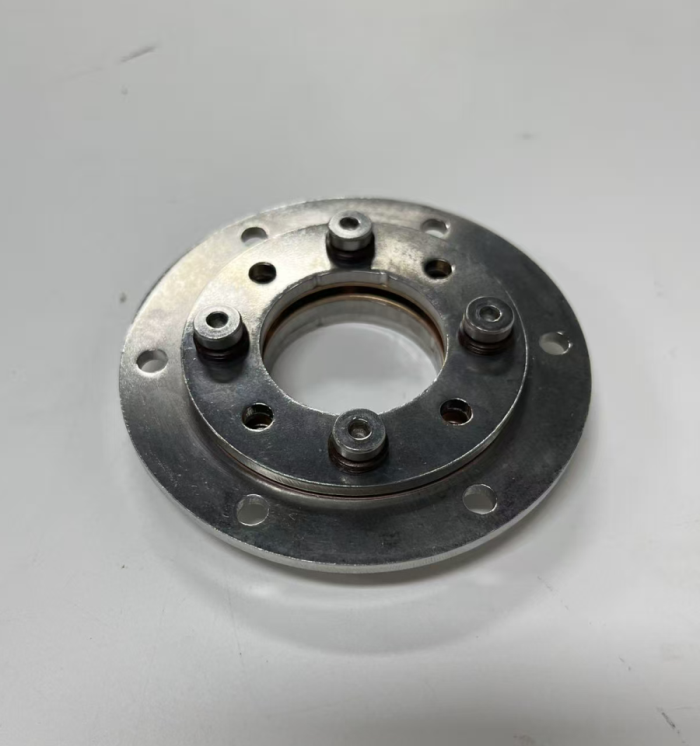

TRD-HG
