Torque Hinge Free Stop Featured Image
  • Torque Hinge Free Stop 1

Torque Hinge Free Stop

Short Description:

This damper hinge has a damping range from 0.1 N·m to 1.5 N·m and is available in both large and small models. It is perfectly suited for various products, ensuring smooth and controlled motion, enhancing the overall quality and user experience of your product.


Product Detail

Product Tags

Technical specifications

Model

Torque（N.m)

Direction

TRD-DP-031

0.3/0.5/1.5

one-way

TRD-DP-034

0.1/0.3/0.5/1/1.5

one-way

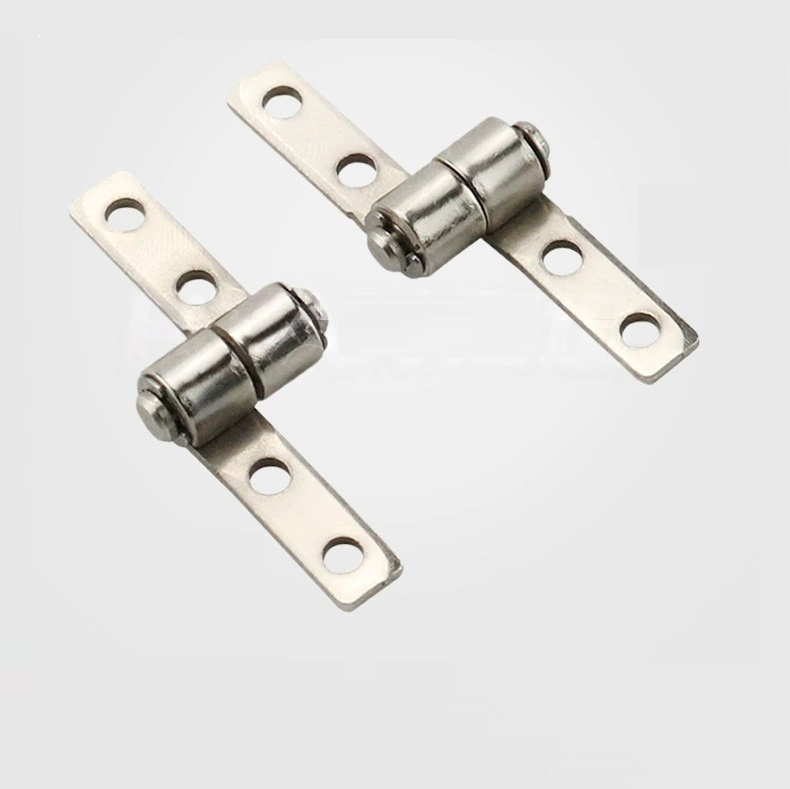

Torque Hinge Free Stop-4

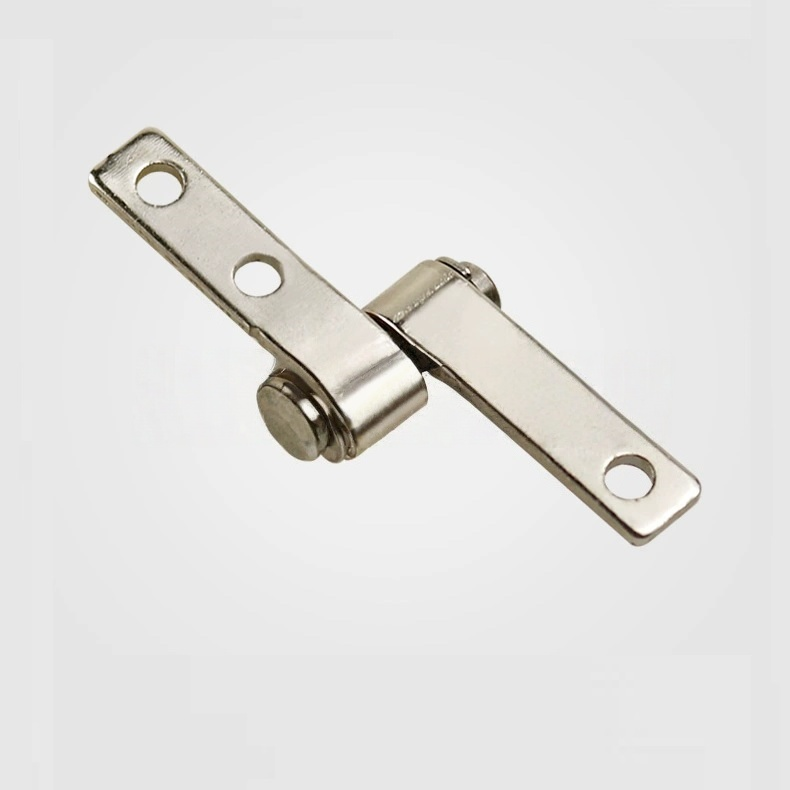

Torque Hinge Free Stop-5
Torque Hinge Free Stop-4

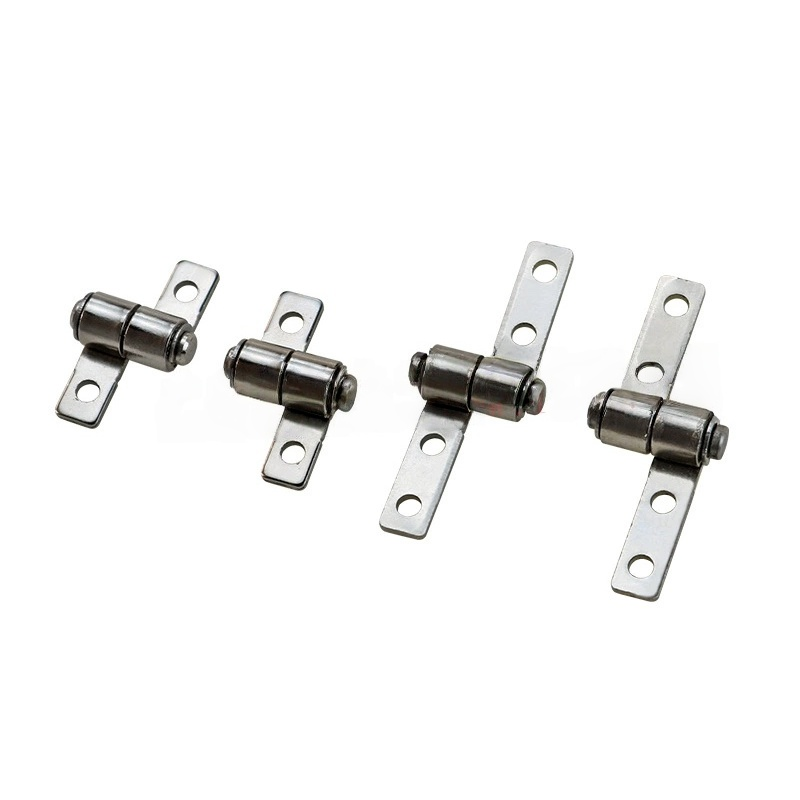

Torque Hinge Free Stop-1

Product photo

Drawing

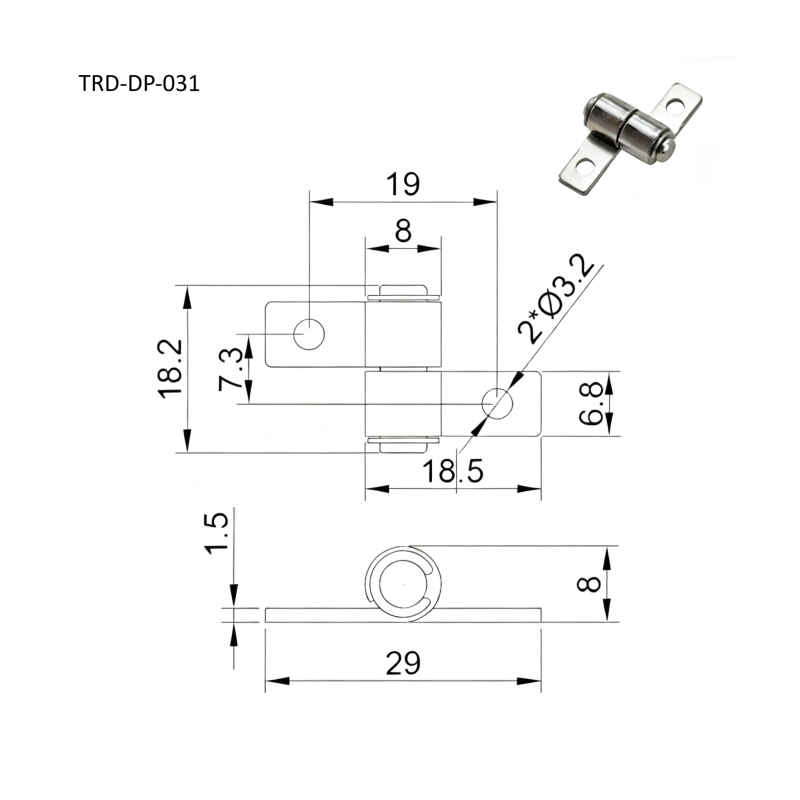

Torque Hinge Free Stop-2

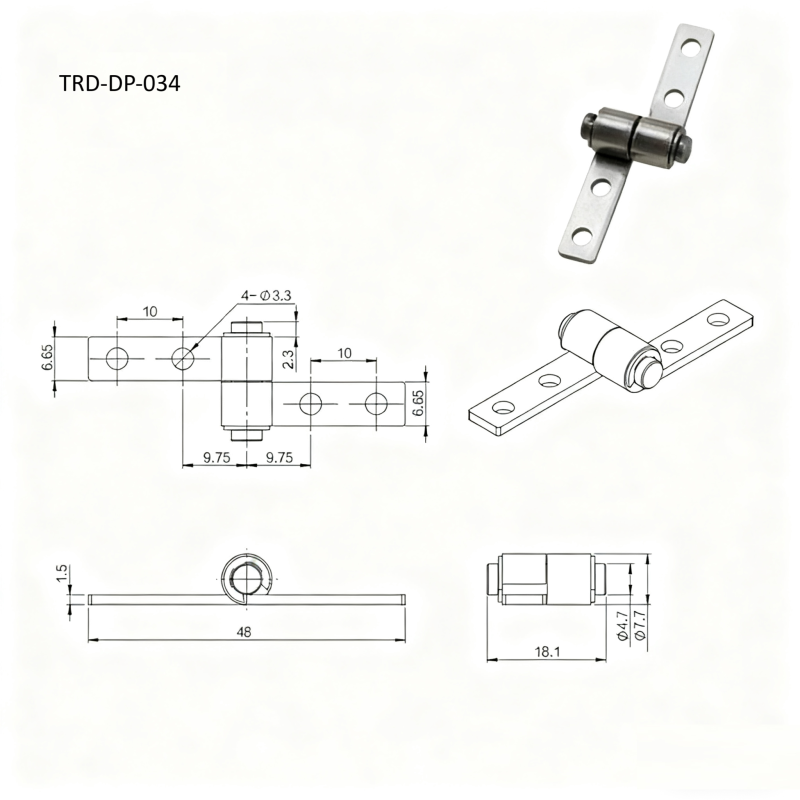

Torque Hinge Free Stop-3

Product Applications

Torque hinges are commonly used in equipment covers, monitor position adjustments, and lighting fixtures.

Torque Hinge Free Stop-7
