Torque Hinge Door Hinge

Short Description:

This torque hinge comes in various models with a wide torque range.
It is commonly used in different types of flaps, including rotary cabinets and other horizontally or vertically opening panels, providing damping protection for smooth, practical, and safe operation.


Product Detail

Product Tags

Technical specifications

Model

Torque（N.m)

Material

Model A

0.5/0.7/1.0/1.5

Iron

Model B

0.3/0.4

Stainless Steel

Model C

0.3/0.5/0.7

Stainless Steel

Model D

1.0

Stainless Steel
Torque Hinge Door Hinge-7

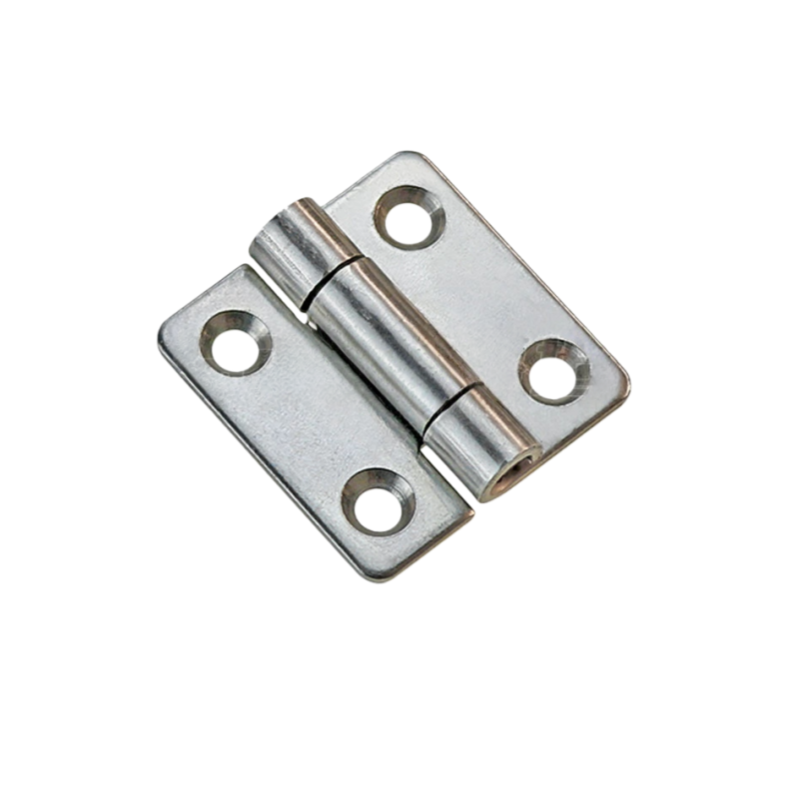

Torque Hinge Door Hinge-8

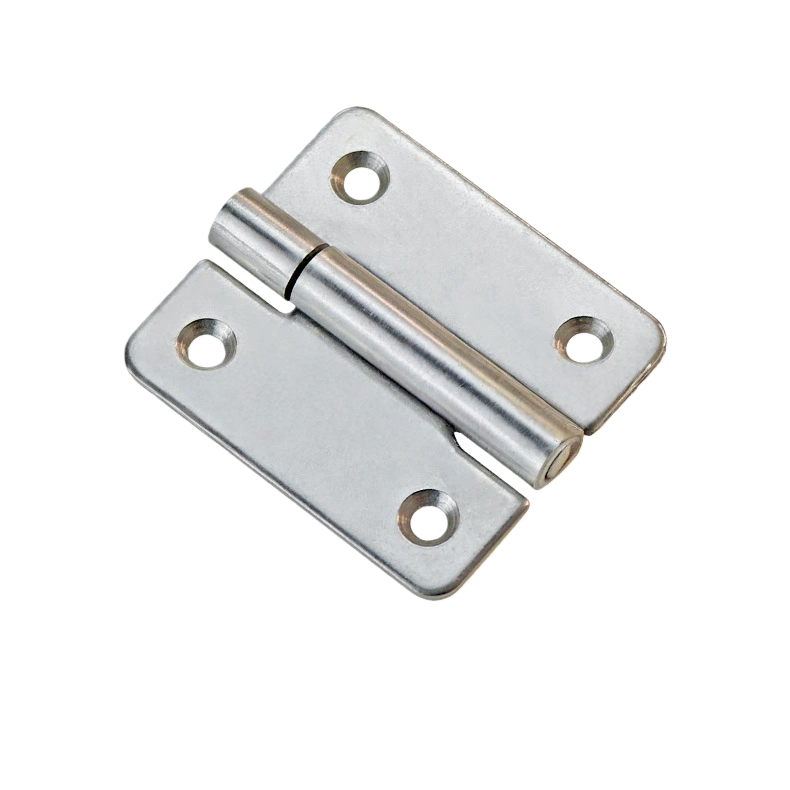

Torque Hinge Door Hinge-9

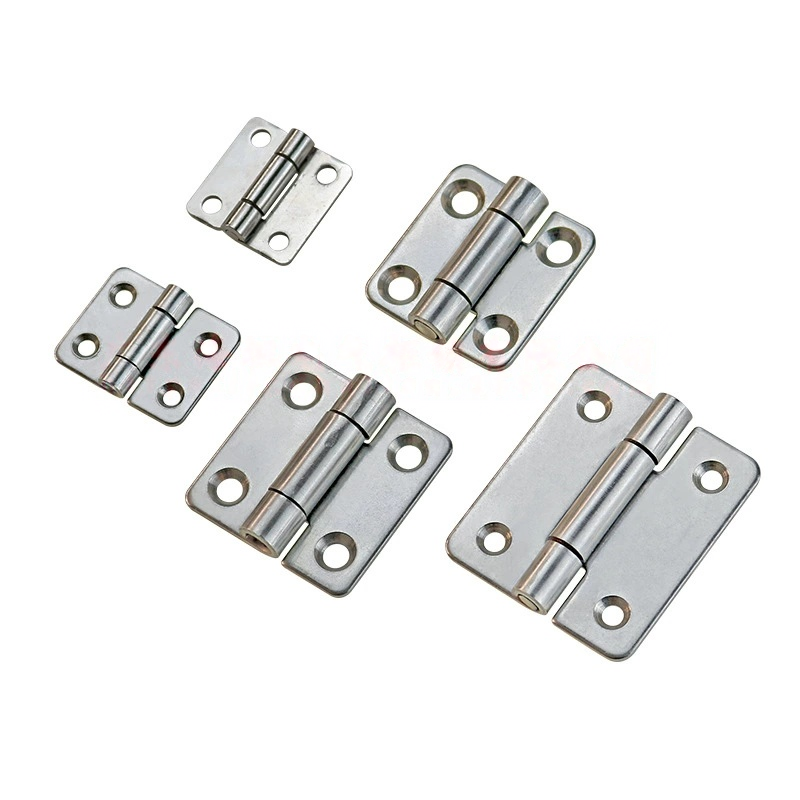

Torque Hinge Door Hinge-10

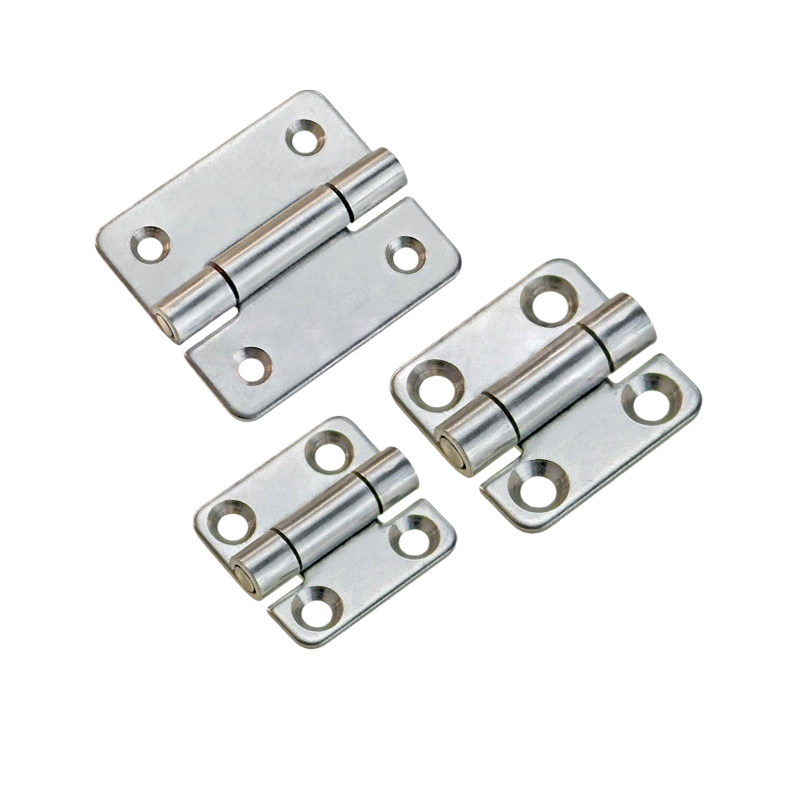

Product photo

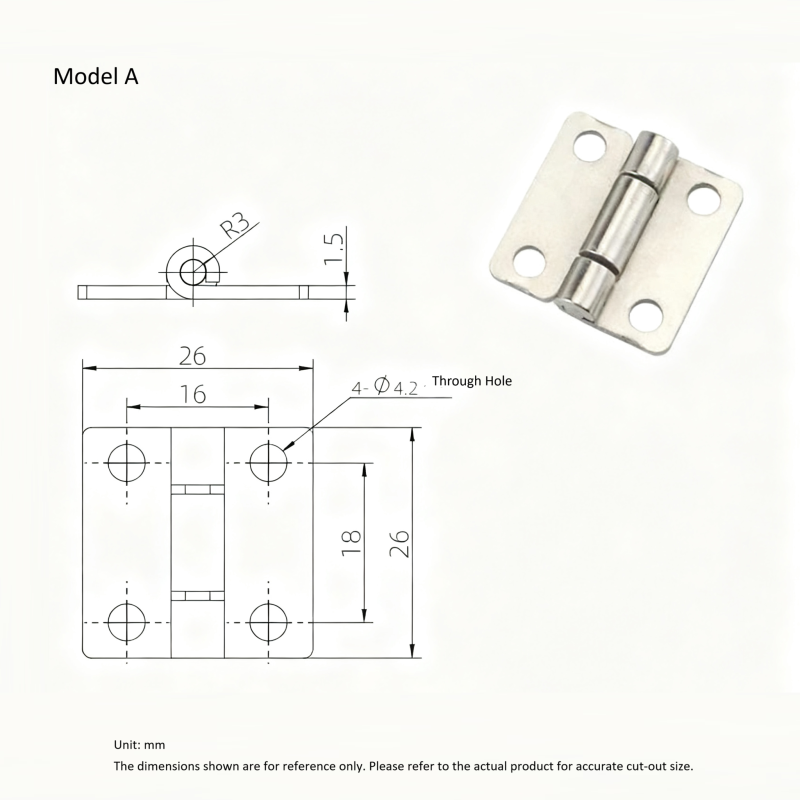

Drawing

Torque Hinge Door Hinge-2

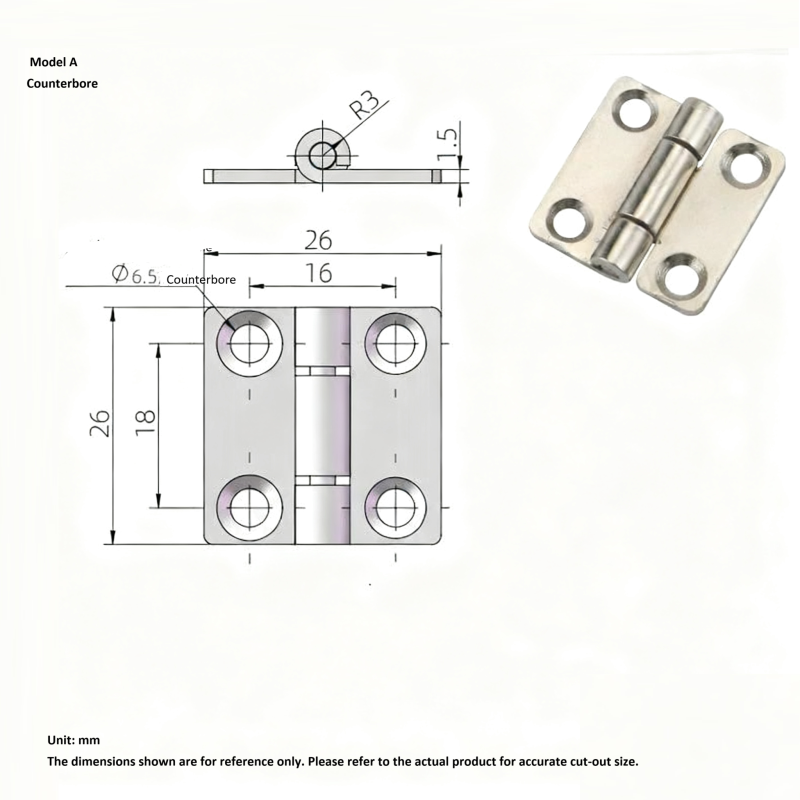

Torque Hinge Door Hinge-3

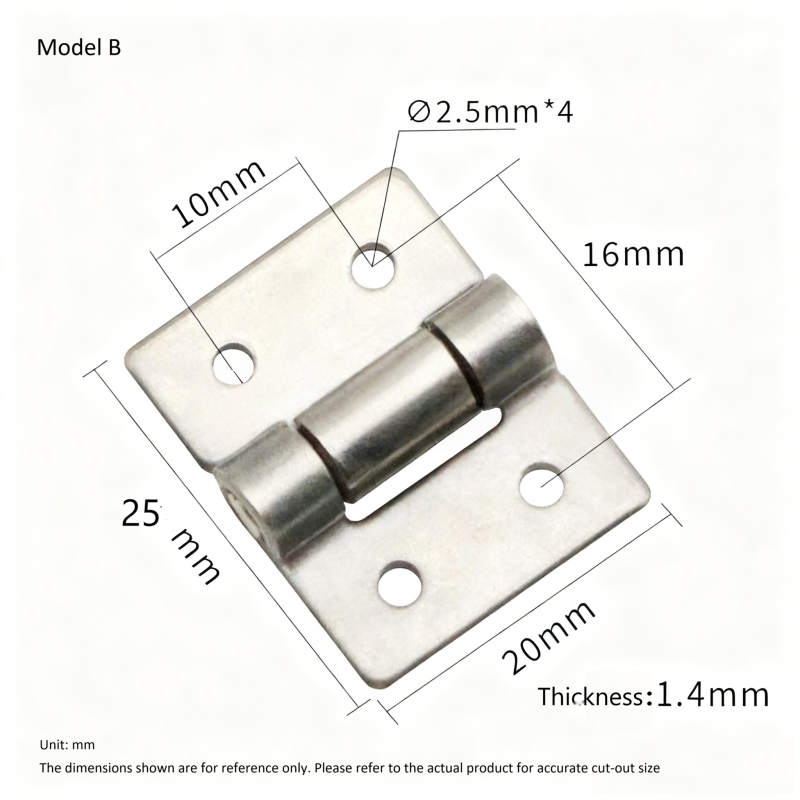

Torque Hinge Door Hinge-4

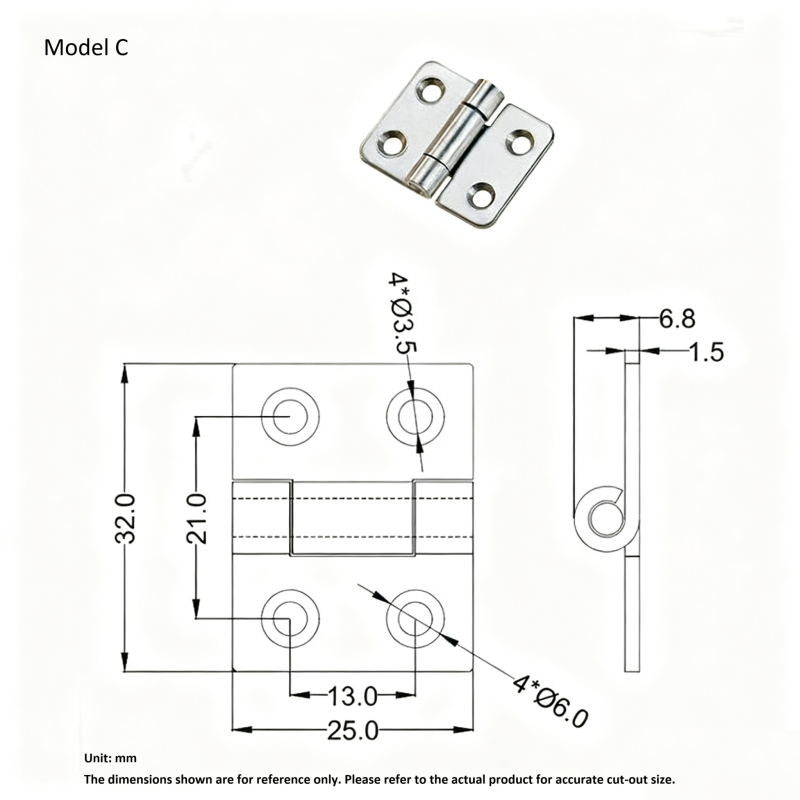

Torque Hinge Door Hinge-5

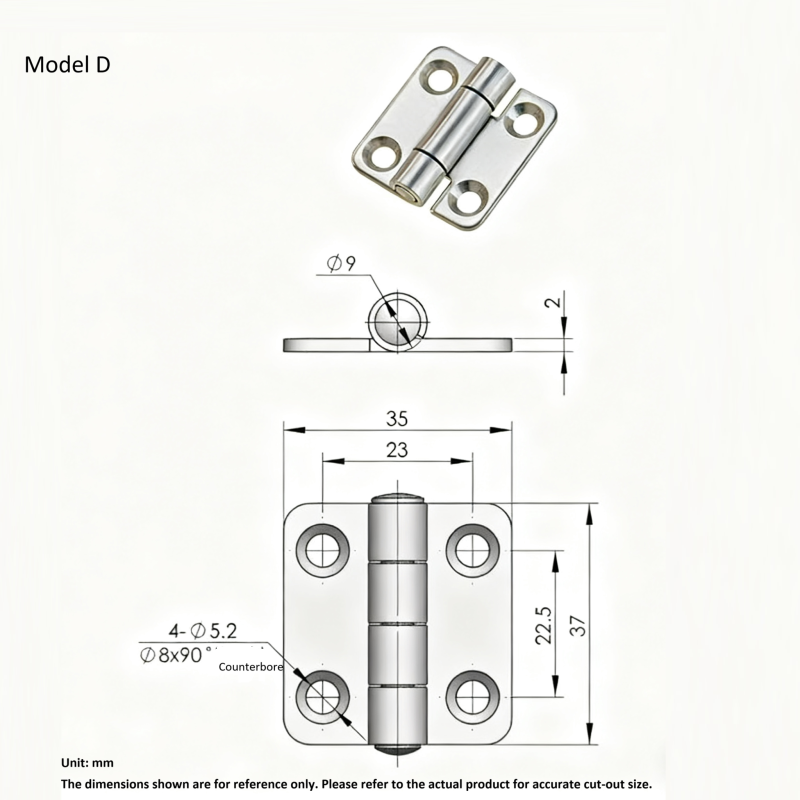

Torque Hinge Door Hinge-6

Product Applications

Torque hinges are perfect for angle adjustment in machine covers, displays, and lighting equipment. They serve a wide range of applications across industries, including medical devices, industrial machinery, transportation, and food processing equipment.

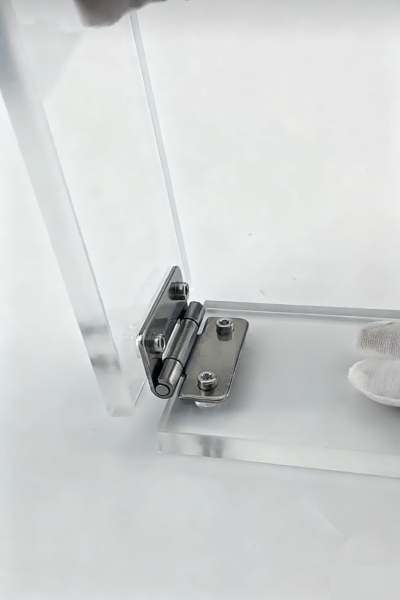

Torque Hinge Door Hinge-11
