Swivel Torque Hinge

Short Description:

1.This product can rotate 360°.

2.The center hole comes in different diameters to suit various applications.

3.High torque, up to 5 N·m.

Send email to us

Product Detail

Product Tags

Product Specification

Model	Torque（N.m)	Center hole diameter（mm)

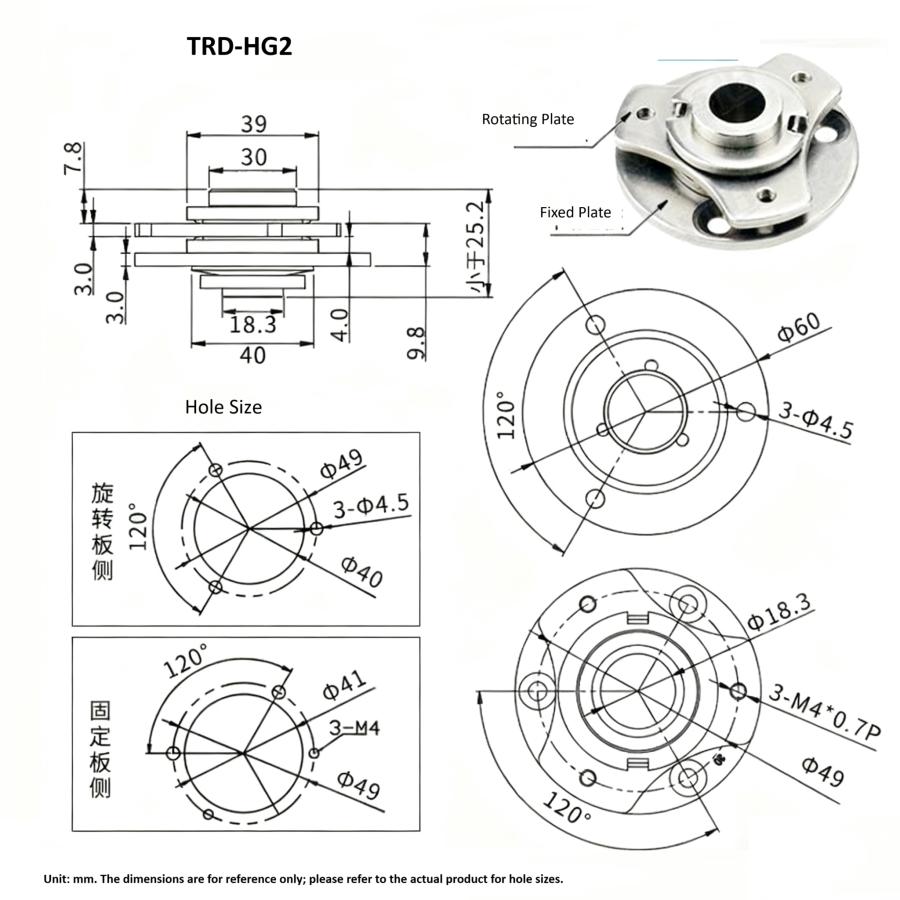

			TRD-HG2	3/5	12

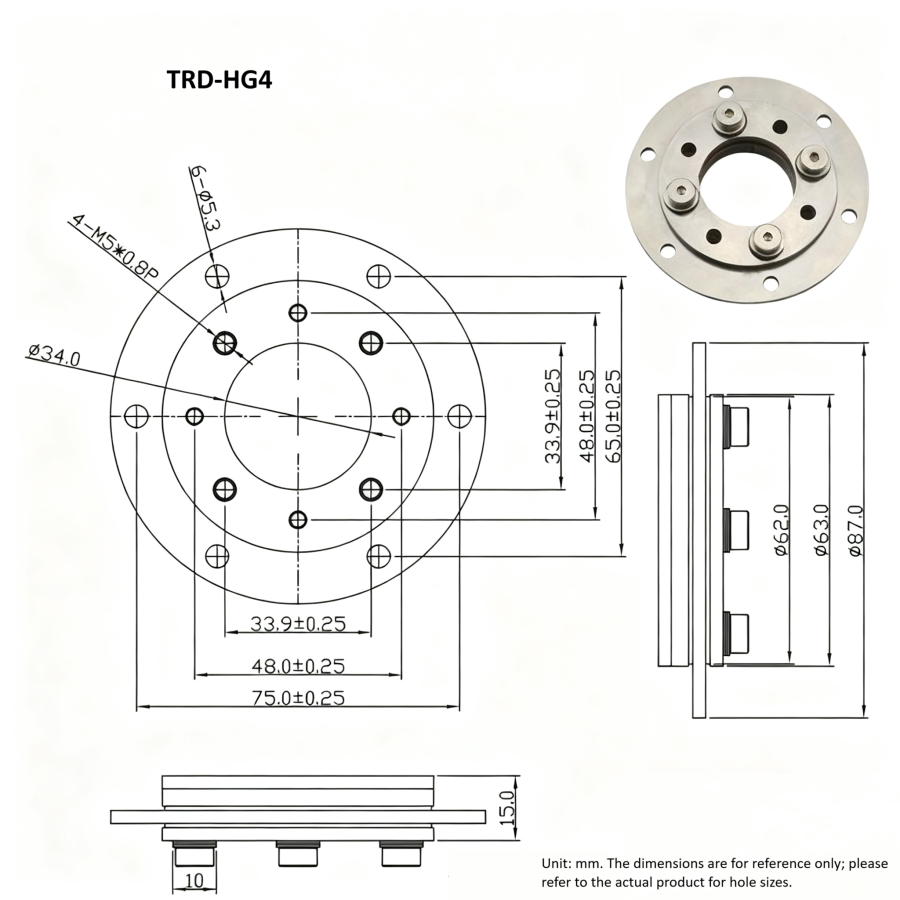

TRD-HG4	5 / 7	34

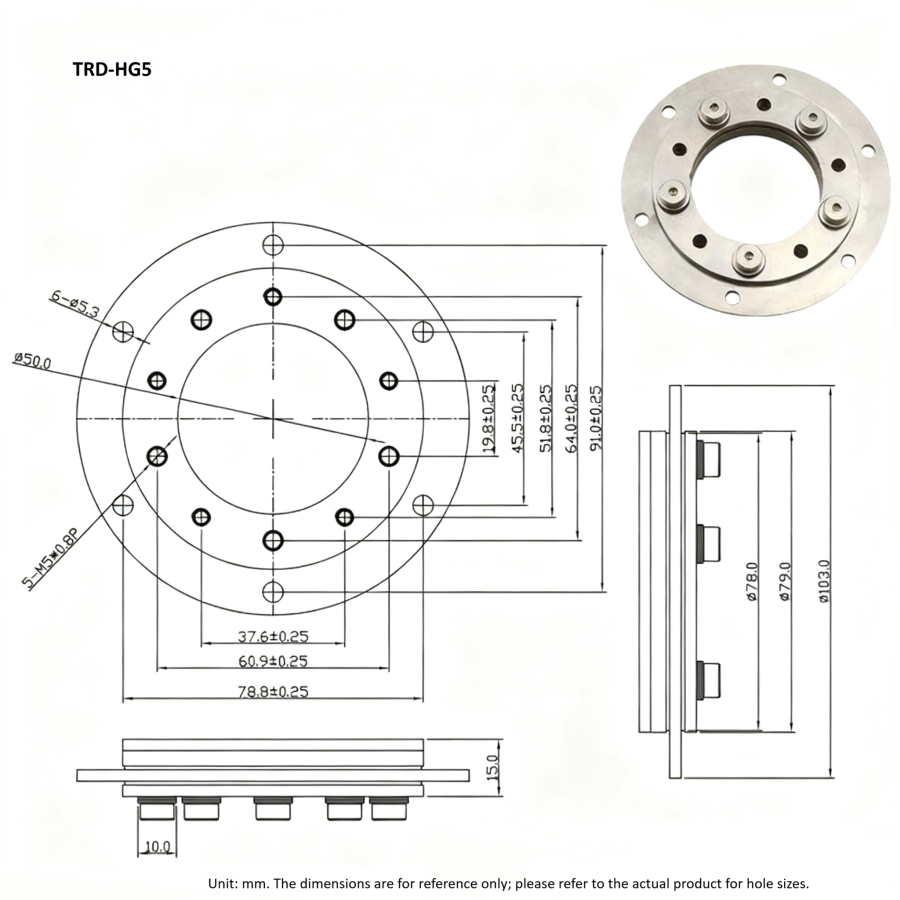

			TRD-HG5	5 / 7	50
TRD-HG6	5 / 7	75

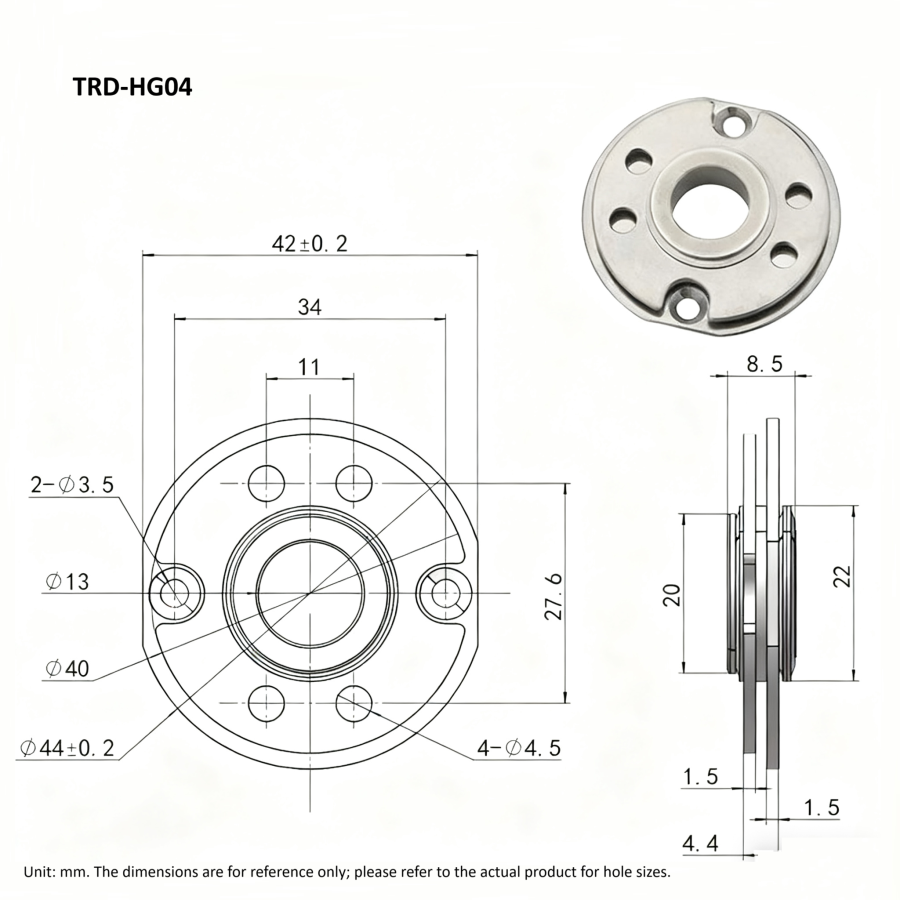

			TRD-HG04	0.13	13
TRD-HG030	2	8

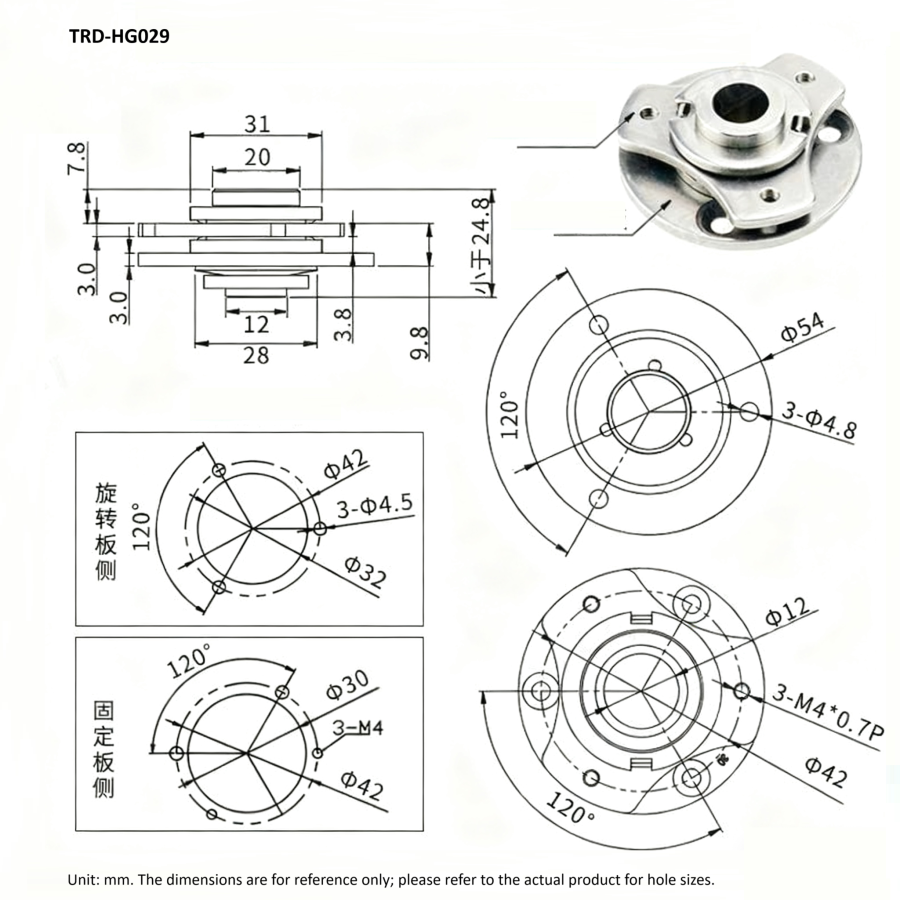

			TRD-HG029	3/5	18

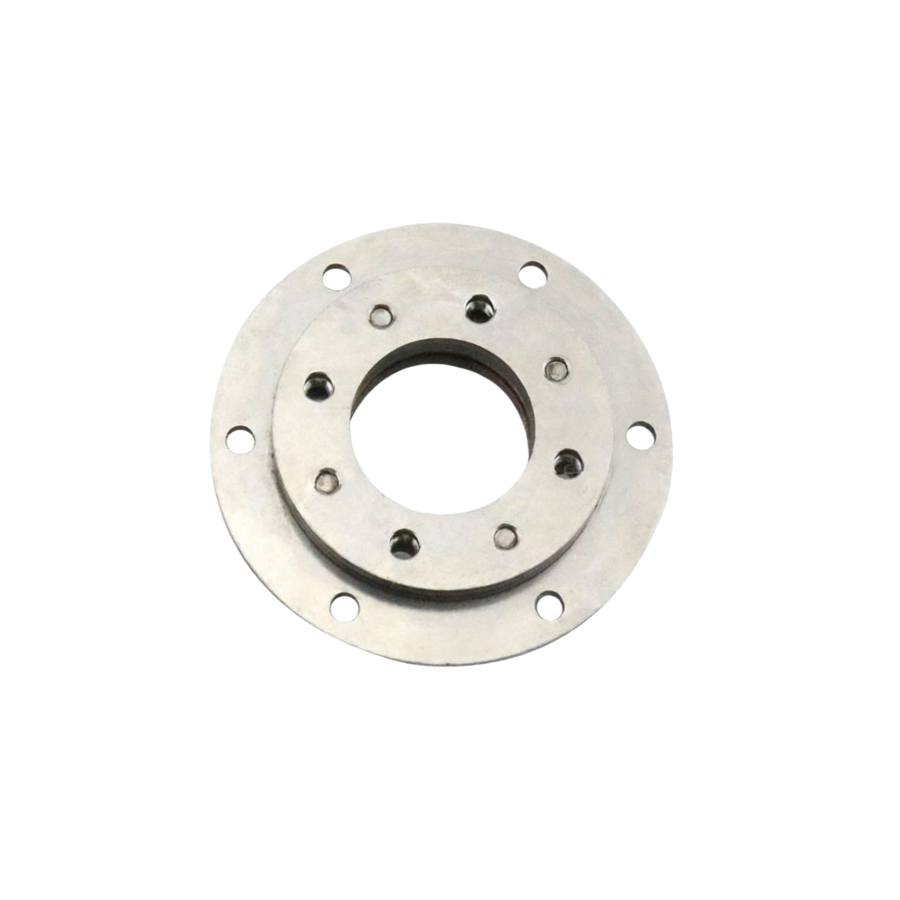

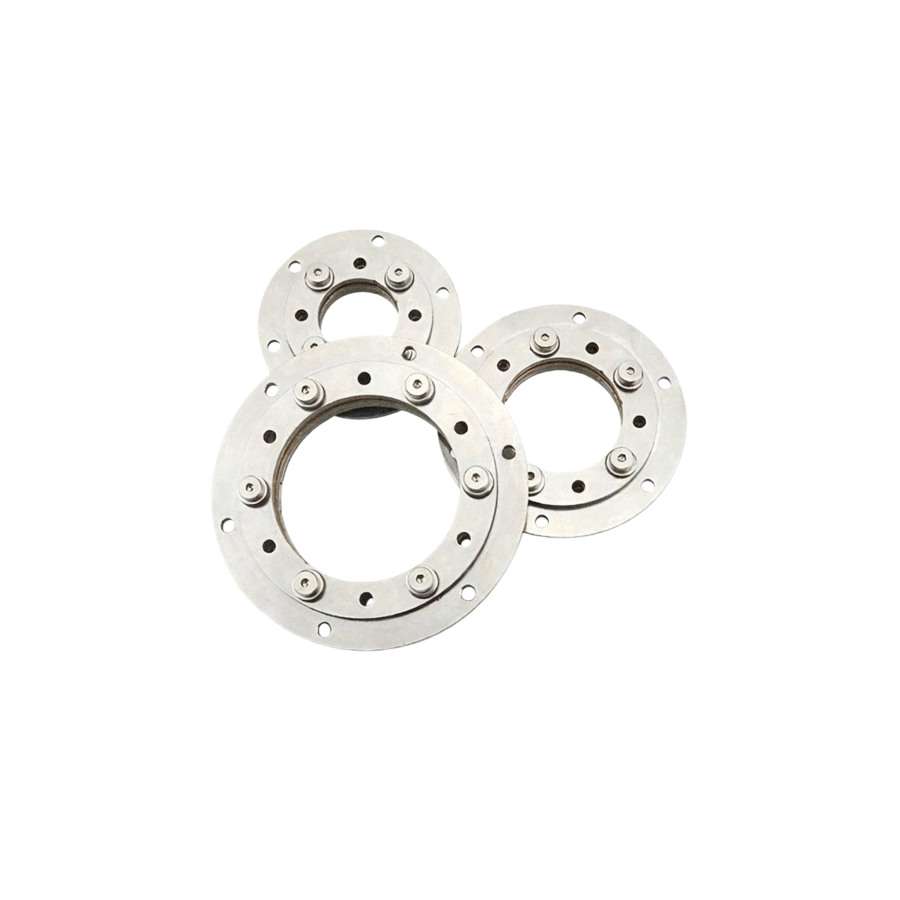

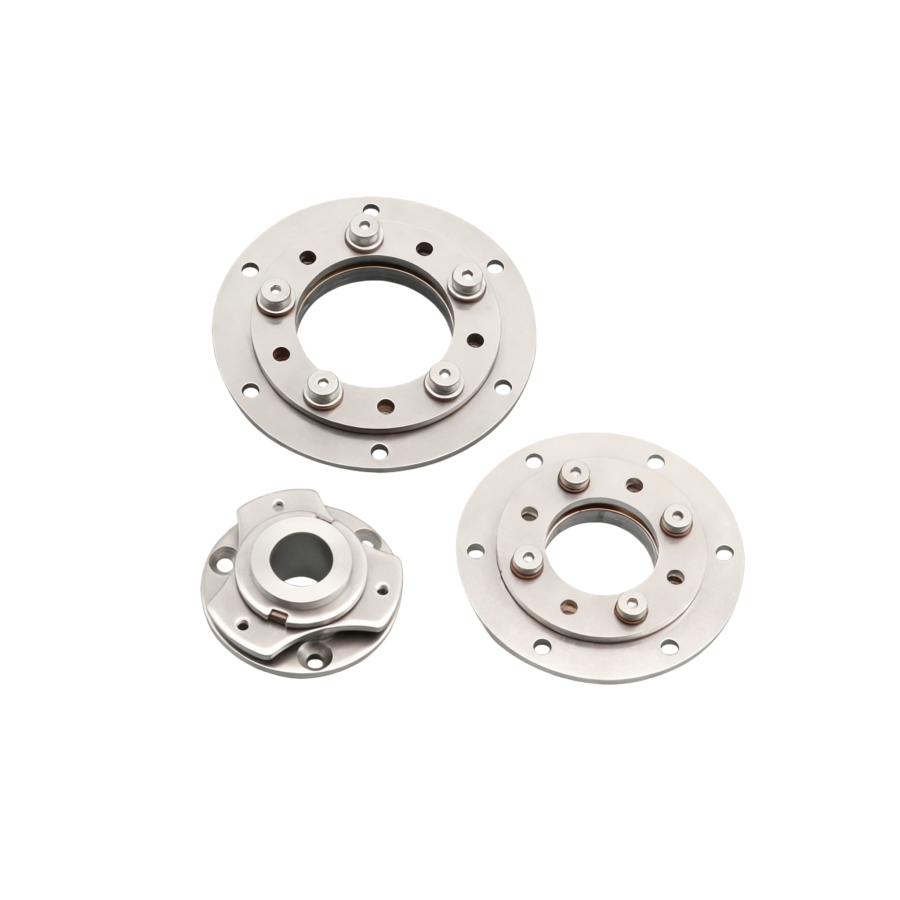

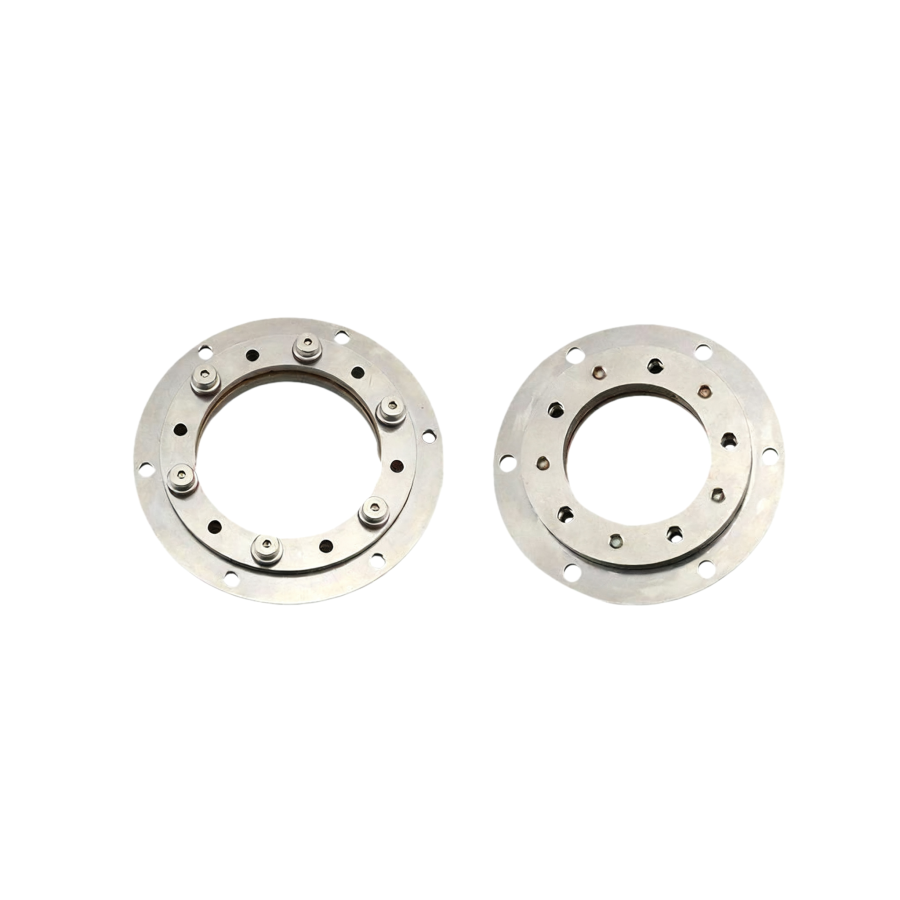

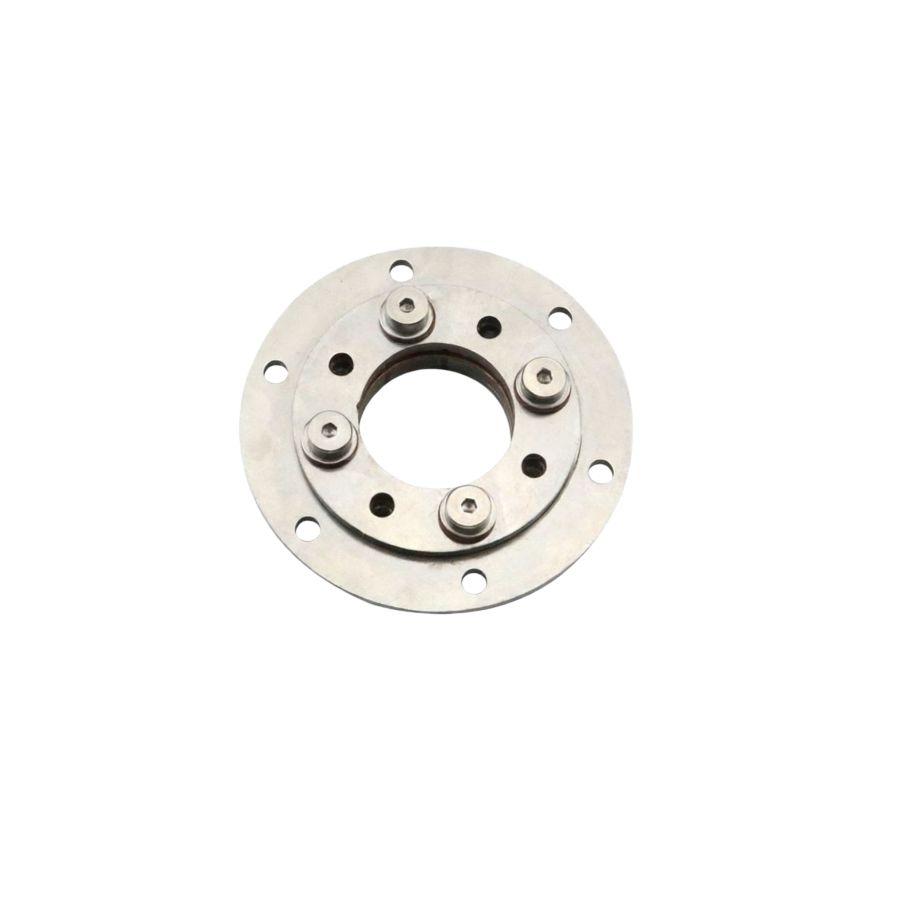

Product photo

Product Applications

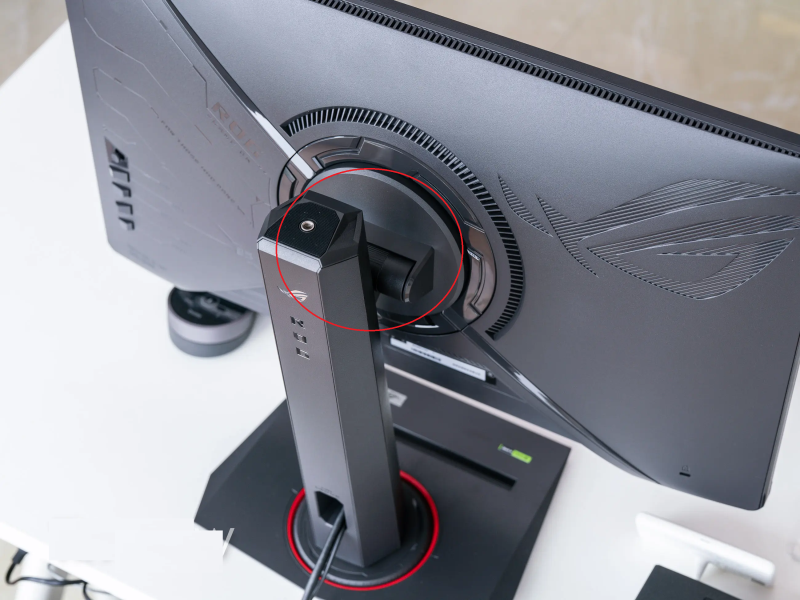

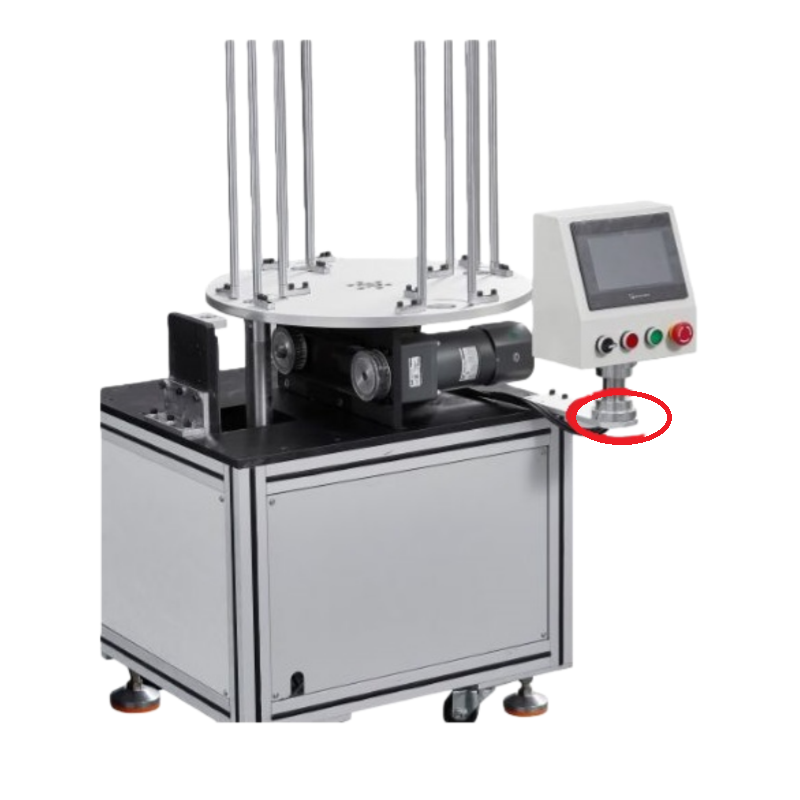

This product is suitable for various industrial equipment, such as operation screens that require angle adjustment. It allows the product to rotate freely, making operation more convenient and better meeting the practical needs of industrial applications.
