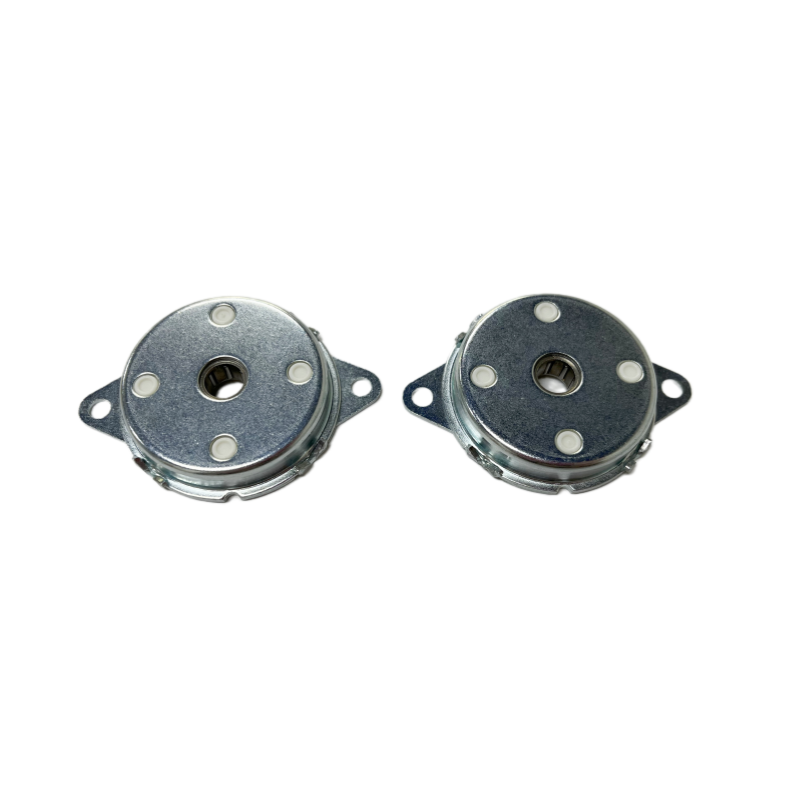

Disk Damper TRD-47X

Short Description:

This Disk Damper is mainly used in auditorium seating, cinema seating, automotive seats, medical beds, and ICU beds.It provides torque in either clockwise or counterclockwise direction, ranging from 1N·m to 3N·m, and lasts over 50,000 cycles. Meeting ISO 9001:2008 and ROHS standards, it ensures durability, reduces wear, and delivers a quieter user experience. Contact us for more details and customized solutions tailored to your needs.

Send email to us

Product Detail

Product Tags

Product Applications

This product is mainly used in applications such as auditorium seating, automotive seats, medical beds, and ICU beds.

Product Video

Damper Torque

specification
code	maximum torque	direction
TRD-47X-R103	1±0.1N·m	clockwise
TRD-47X-L103		anticlockwise
TRD-47X-R163	1.6±0.3N·m	clockwise
TRD-47X-L163		anticlockwise
TRD-47X-R203	2.0±0.3N·m	clockwise
TRD-47X-L203		anticlockwise
TRD-47X-R303	3.0±0.4N·m	clockwise
TRD-47X-L303		anticlockwise
(Note) The rated torque is tested at 23°C±3°C and the rotation speed is 20 RPM.
